Description
Brand - IKO
Item Number - CRY 64 VUU IKO
Also Known As - CRY64VUU
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 31.75
Shaft Diameter (inch) - 1.25

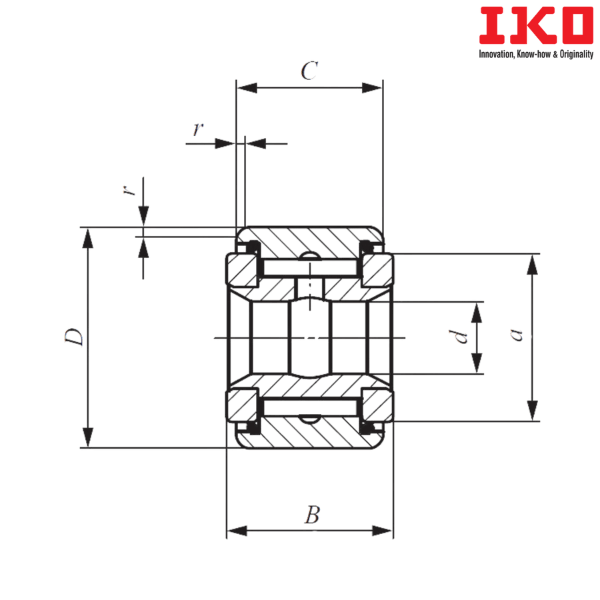

Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 101.6
Outer Diameter (D) inch - 4
Width (B) mm - 58.738
Width (B) inch - 2.3125
Boundary dimension (C) mm - 57.15
Boundary dimension (C) inch - 2.25
Boundary dimension (a) mm - 71
Boundary dimension (a) inch - 2.797
Boundary dimension (r) mm - 2.381
Boundary dimension (r) inch - 0.09375
Minimum Push Fit (mm) - 31.727
Maximum Push Fit (mm) - 31.74
Minimum Drive Fit (mm) - 31.747
Maximum Drive Fit (mm) - 31.76
Minimum Press Fit (mm) - 31.758
Maximum Press Fit (mm) - 31.77
Basic Dynamic Load Rating (C) N - 142000
Basic Static Load Rating (C0) N - 317000
Shield Type Bearing with Cylindrical Outer Ring - CRY 64 V
Weight (kg) - 3.19
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side
** Images are for representation purposes only
