Description
Brand - IKO
Item Number - CRY 56 V IKO
Also Known As - CRY56V
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Shield Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 28.575
Shaft Diameter (inch) - 1.125

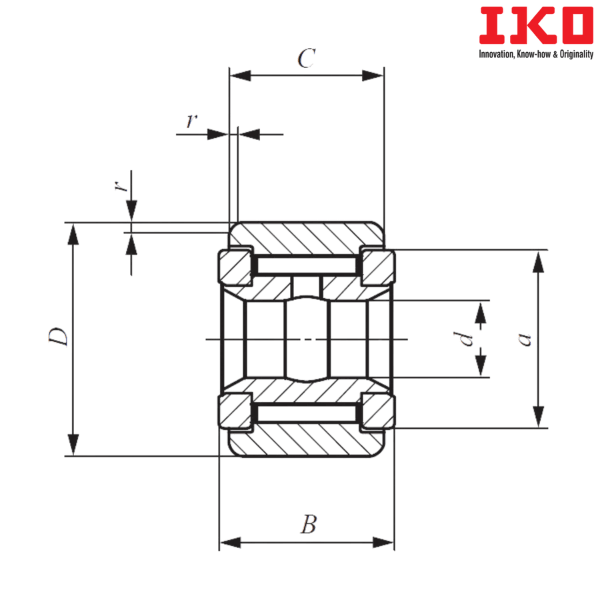

Bore Diameter (d) mm - 28.575
Bore Diameter (d) inch - 1.125
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Width (B) mm - 52.388
Width (B) inch - 2.0625
Boundary dimension (C) mm - 50.8
Boundary dimension (C) inch - 2
Boundary dimension (a) mm - 61.9
Boundary dimension (a) inch - 2.437
Boundary dimension (r) mm - 2.381
Boundary dimension (r) inch - 0.09375
Minimum Push Fit (mm) - 28.522
Maximum Push Fit (mm) - 28.565
Minimum Drive Fit (mm) - 28.572
Maximum Drive Fit (mm) - 28.585
Minimum Press Fit (mm) - 28.583
Maximum Press Fit (mm) - 28.595
Basic Dynamic Load Rating (C) N - 111000
Basic Static Load Rating (C0) N - 239000
Sealed Type Bearing with Cylindrical Outer Ring - CRY 56 VUU
Weight (kg) - 2.16
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements

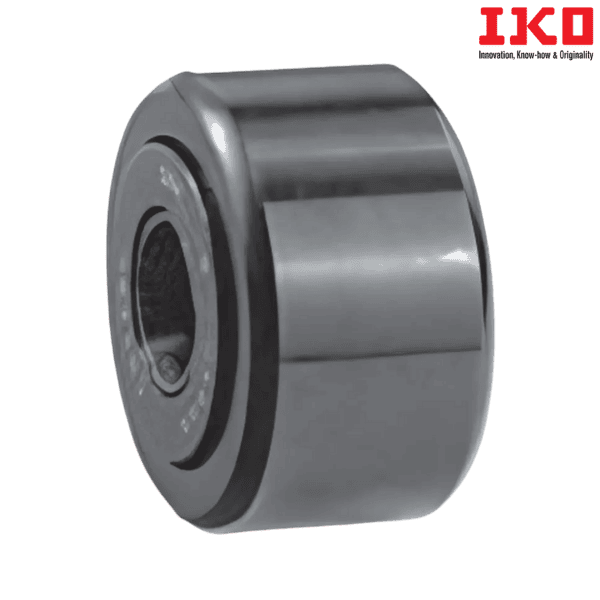

** Images are for representation purposes only
