Description
Brand - IKO
Item Number - CRY 52 V IKO
Also Known As - CRY52V
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Shield Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 25.4
Shaft Diameter (inch) - 1

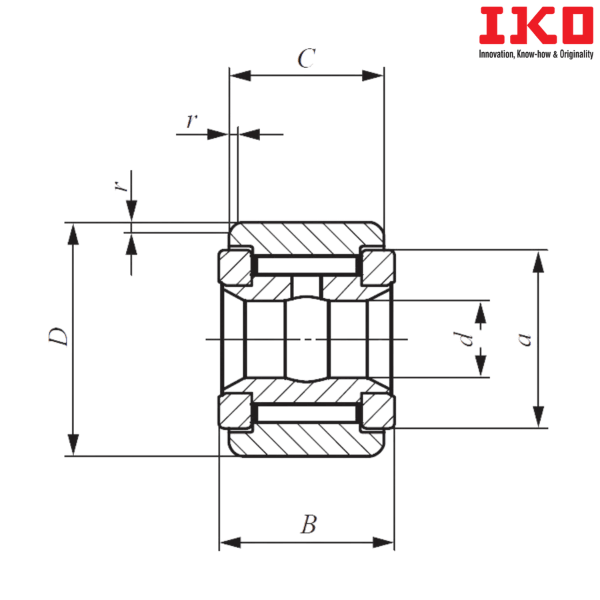

Bore Diameter (d) mm - 25.4
Bore Diameter (d) inch - 1
Outer Diameter (D) mm - 82.55
Outer Diameter (D) inch - 3.25
Width (B) mm - 46.038
Width (B) inch - 1.8125
Boundary dimension (C) mm - 44.45
Boundary dimension (C) inch - 1.75
Boundary dimension (a) mm - 54
Boundary dimension (a) inch - 2.125
Boundary dimension (r) mm - 2.381
Boundary dimension (r) inch - 0.09375
Minimum Push Fit (mm) - 25.377
Maximum Push Fit (mm) - 25.39
Minimum Drive Fit (mm) - 25.397
Maximum Drive Fit (mm) - 25.41
Minimum Press Fit (mm) - 25.408
Maximum Press Fit (mm) - 25.42
Basic Dynamic Load Rating (C) N - 77600
Basic Static Load Rating (C0) N - 172000
Sealed Type Bearing with Cylindrical Outer Ring - CRY 52 VUU
Weight (kg) - 1.64
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
** Images are for representation purposes only
