Description
Brand - IKO
Item Number - CRY 44 VUUR IKO
Also Known As - CRY44VUUR
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 19.05
Shaft Diameter (inch) - 0.75

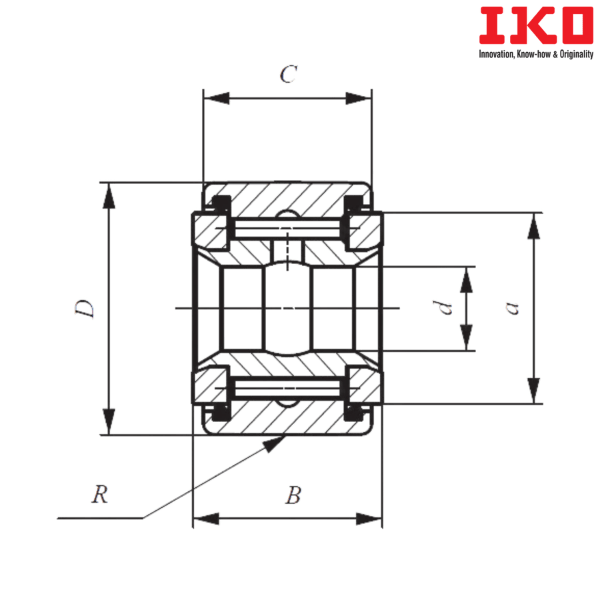

Bore Diameter (d) mm - 19.05
Bore Diameter (d) inch - 0.75
Outer Diameter (D) mm - 69.85
Outer Diameter (D) inch - 2.75
Width (B) mm - 39.688
Width (B) inch - 1.5625
Boundary dimension (C) mm - 38.1
Boundary dimension (C) inch - 1.5
Boundary dimension (a) mm - 43.3
Boundary dimension (a) inch - 1.705
Boundary dimension (R) mm - 760
Boundary dimension (R) inch - 30
Minimum Push Fit (mm) - 19.032
Maximum Push Fit (mm) - 19.042
Minimum Drive Fit (mm) - 19.048
Maximum Drive Fit (mm) - 19.058
Minimum Press Fit (mm) - 19.058
Maximum Press Fit (mm) - 19.068
Basic Dynamic Load Rating (C) N - 61400
Basic Static Load Rating (C0) N - 116000
Shield Type Bearing with Crowned Outer Ring - CRY 44 VR
Weight (kg) - 1.031
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side
R - With Crowned Outer Ring

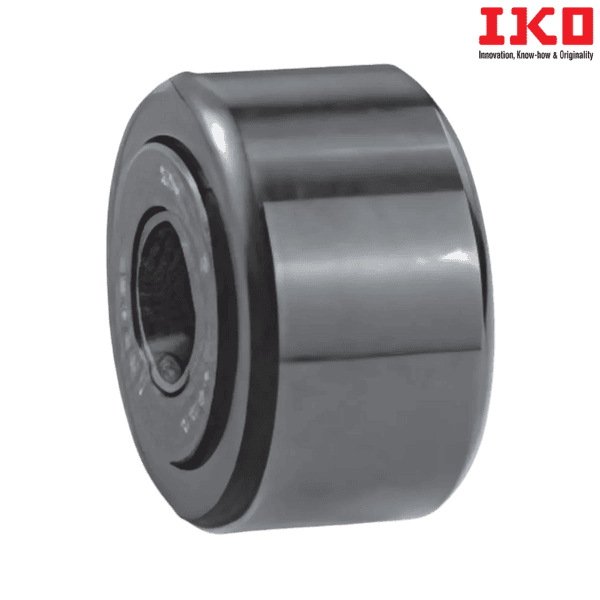

** Images are for representation purposes only
