Description
Brand - IKO
Item Number - CRY 32 VUU IKO
Also Known As - CRY32VUU
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 15.875
Shaft Diameter (inch) - 0.625

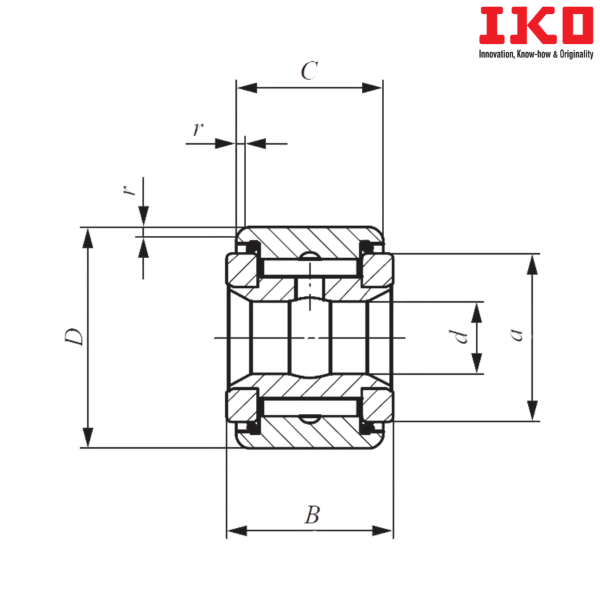

Bore Diameter (d) mm - 15.875
Bore Diameter (d) inch - 0.625
Outer Diameter (D) mm - 50.8
Outer Diameter (D) inch - 2
Width (B) mm - 33.338
Width (B) inch - 1.3125
Boundary dimension (C) mm - 31.75
Boundary dimension (C) inch - 1.25
Boundary dimension (a) mm - 36
Boundary dimension (a) inch - 1.417
Boundary dimension (r) mm - 1.588
Boundary dimension (r) inch - 0.0625
Minimum Push Fit (mm) - 15.857
Maximum Push Fit (mm) - 15.867
Minimum Drive Fit (mm) - 15.873
Maximum Drive Fit (mm) - 15.883
Minimum Press Fit (mm) - 15.883
Maximum Press Fit (mm) - 15.893
Basic Dynamic Load Rating (C) N - 45700
Basic Static Load Rating (C0) N - 80600
Shield Type Bearing with Cylindrical Outer Ring - CRY 32 V
Weight (kg) - 0.442
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side
** Images are for representation purposes only
