CRY 28 VR IKO

Brand - IKO
Item Number - CRY 28 VR IKO
Also Known As - CRY28VR
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Shield Type (Crowned Outer Ring)
Shaft Diameter (mm) - 12.7
Shaft Diameter (inch) - 0.5

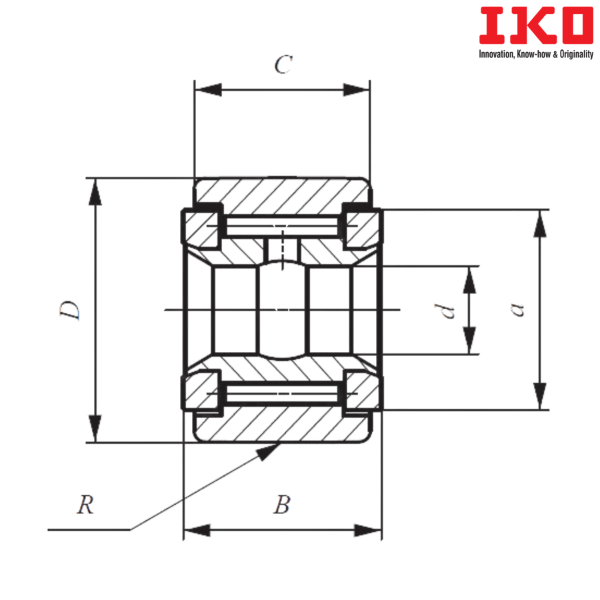

Bore Diameter (d) mm - 12.7
Bore Diameter (d) inch - 0.5
Outer Diameter (D) mm - 44.45
Outer Diameter (D) inch - 1.75
Width (B) mm - 26.988
Width (B) inch - 1.0625
Boundary dimension (C) mm - 25.4
Boundary dimension (C) inch - 1
Boundary dimension (a) mm - 32.7
Boundary dimension (a) inch - 1.287
Boundary dimension (R) mm - 500
Boundary dimension (R) inch - 20
Minimum Push Fit (mm) - 12.682
Maximum Push Fit (mm) - 12.692
Minimum Drive Fit (mm) - 12.698
Maximum Drive Fit (mm) - 12.708
Minimum Press Fit (mm) - 12.708
Maximum Press Fit (mm) - 12.718
Basic Dynamic Load Rating (C) N - 35300
Basic Static Load Rating (C0) N - 55600
Sealed Type Bearing with Crowned Outer Ring - CRY 28 VUUR
Weight (kg) - 0.276

Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
R - With Crowned Outer Ring

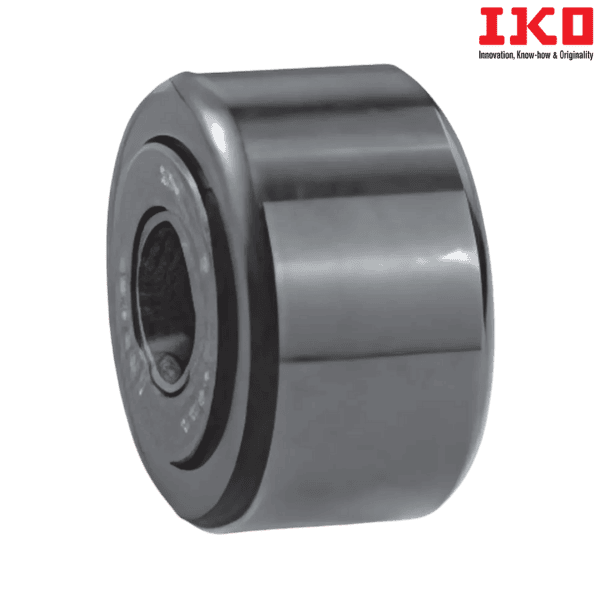

** Images are for representation purposes only
