Description
Brand - IKO
Item Number - CRY 26 VUUR IKO
Also Known As - CRY26VUUR
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)

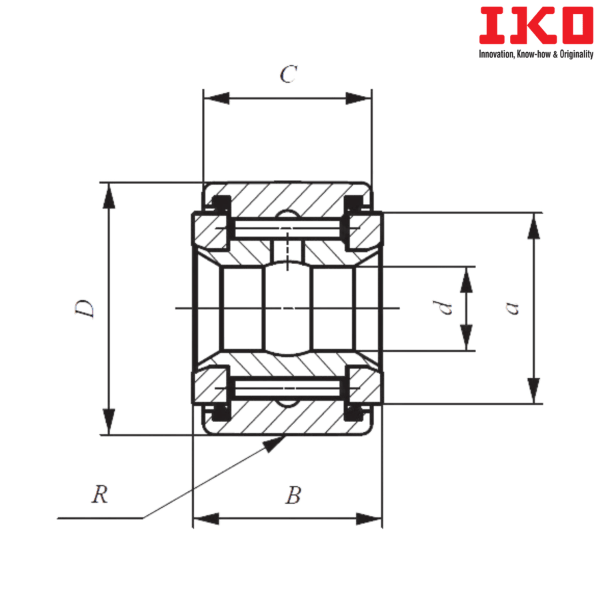

Shaft Diameter (mm) - 11.112
Shaft Diameter (inch) - 0.4375
Bore Diameter (d) mm - 11.112
Bore Diameter (d) inch - 0.4375
Outer Diameter (D) mm - 41.275
Outer Diameter (D) inch - 1.625
Width (B) mm - 23.813
Width (B) inch - 0.9375
Boundary dimension (C) mm - 22.225
Boundary dimension (C) inch - 0.875
Boundary dimension (a) mm - 28.8
Boundary dimension (a) inch - 1.134
Boundary dimension (R) mm - 500
Boundary dimension (R) inch - 20
Minimum Push Fit (mm) - 11.095
Maximum Push Fit (mm) - 11.105
Minimum Drive Fit (mm) - 11.11
Maximum Drive Fit (mm) - 11.12
Minimum Press Fit (mm) - 11.115
Maximum Press Fit (mm) - 11.125
Basic Dynamic Load Rating (C) N - 28200
Basic Static Load Rating (C0) N - 40100
Shield Type Bearing with Crowned Outer Ring - CRY 26 VR
Weight (kg) - 0.21
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side
R - With Crowned Outer Ring

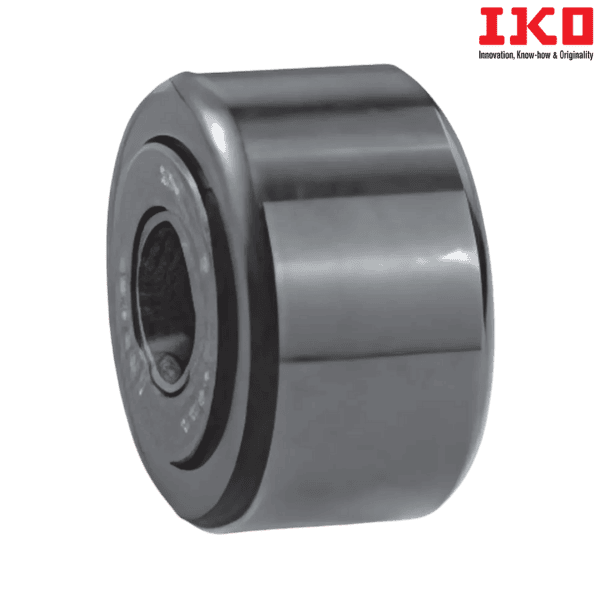

** Images are for representation purposes only
