Description
Brand - IKO
Item Number - CRY 20 VR IKO
Also Known As - CRY20VR
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Shield Type (Crowned Outer Ring)
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375

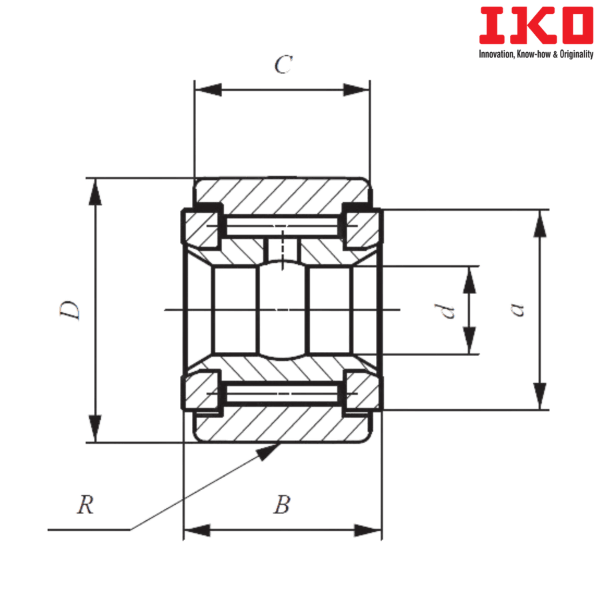

Bore Diameter (d) mm - 9.525
Bore Diameter (d) inch - 0.375
Outer Diameter (D) mm - 31.75
Outer Diameter (D) inch - 1.25
Width (B) mm - 20.638
Width (B) inch - 0.8125
Boundary dimension (C) mm - 19.05
Boundary dimension (C) inch - 0.75
Boundary dimension (a) mm - 25
Boundary dimension (a) inch - 0.984
Boundary dimension (R) mm - 360
Boundary dimension (R) inch - 14
Minimum Push Fit (mm) - 9.507
Maximum Push Fit (mm) - 9.517
Minimum Drive Fit (mm) - 9.523
Maximum Drive Fit (mm) - 9.533
Minimum Press Fit (mm) - 9.528
Maximum Press Fit (mm) - 9.538
Basic Dynamic Load Rating (C) N - 23600
Basic Static Load Rating (C0) N - 31700
Sealed Type Bearing with Crowned Outer Ring - CRY 20 VUUR
Weight (kg) - 0.103
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
R - With Crowned Outer Ring

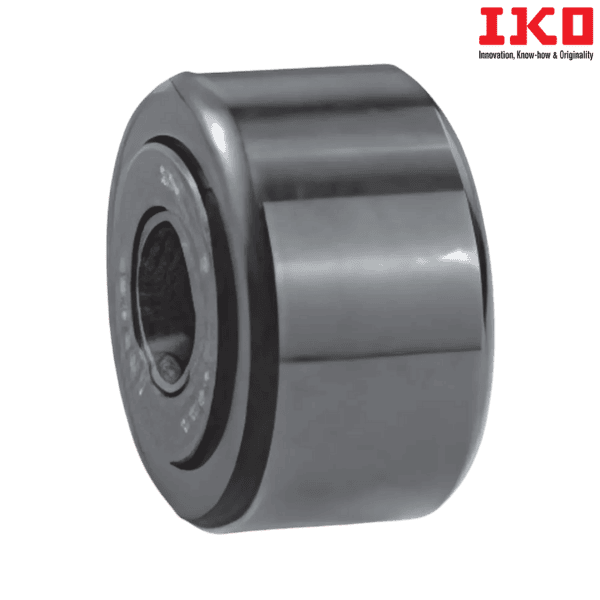

** Images are for representation purposes only
