Description
Brand - IKO
Item Number - CRY 18 VUU IKO
Also Known As - CRY18VUU
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)

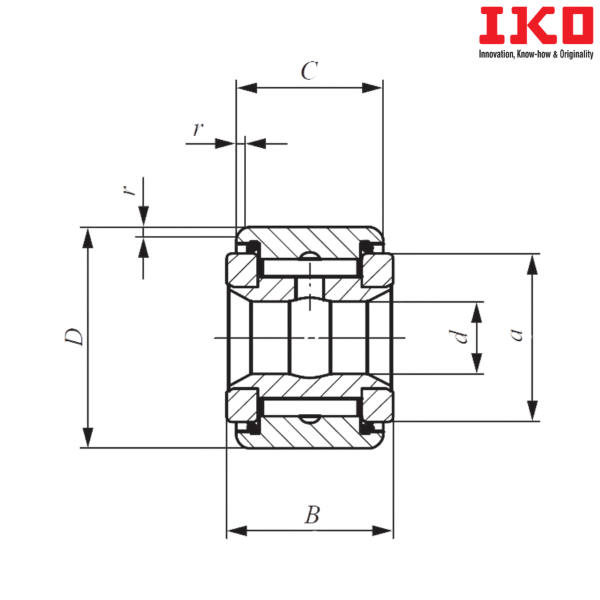

Shaft Diameter (mm) - 7.938
Shaft Diameter (inch) - 0.3125
Bore Diameter (d) mm - 7.938
Bore Diameter (d) inch - 0.3125
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.125
Width (B) mm - 17.463
Width (B) inch - 0.6875
Boundary dimension (C) mm - 15.875
Boundary dimension (C) inch - 0.625
Boundary dimension (a) mm - 19.6
Boundary dimension (a) inch - 0.772
Boundary dimension (r) mm - 1.588
Boundary dimension (r) inch - 0.0625
Minimum Push Fit (mm) - 7.92
Maximum Push Fit (mm) - 7.93
Minimum Drive Fit (mm) - 7.935
Maximum Drive Fit (mm) - 7.945
Minimum Press Fit (mm) - 7.94
Maximum Press Fit (mm) - 7.95
Basic Dynamic Load Rating (C) N - 13100
Basic Static Load Rating (C0) N - 22700
Shield Type Bearing with Cylindrical Outer Ring - CRY 18 V
Weight (kg) - 0.072
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side

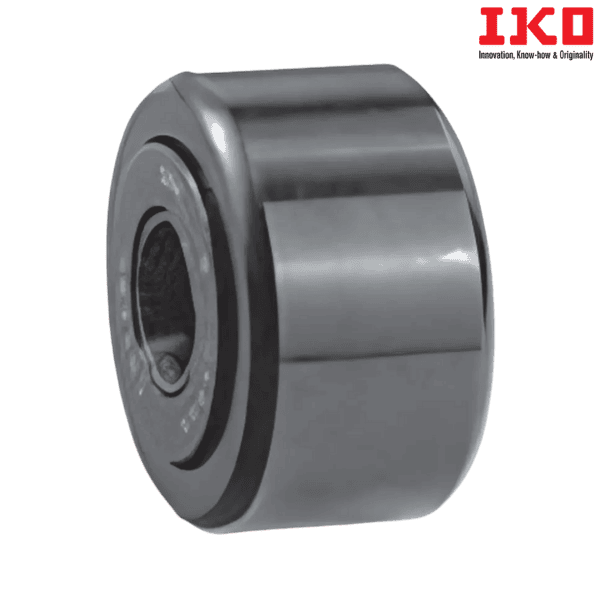

** Images are for representation purposes only
