Description
Brand - IKO
Item Number - CRY 14 VUU IKO
Also Known As - CRY14VUU
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 6.35
Shaft Diameter (inch) - 0.25

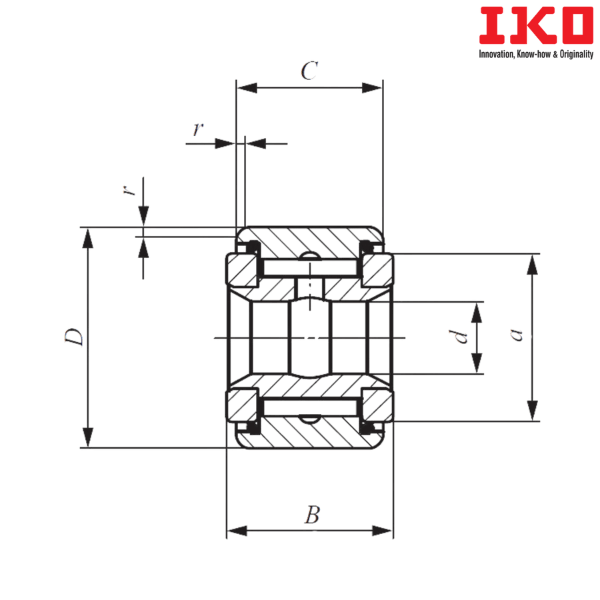

Bore Diameter (d) mm - 6.35
Bore Diameter (d) inch - 0.25
Outer Diameter (D) mm - 22.225
Outer Diameter (D) inch - 0.875
Width (B) mm - 14.288
Width (B) inch - 0.5625
Boundary dimension (C) mm - 12.7
Boundary dimension (C) inch - 0.5
Boundary dimension (a) mm - 14.4
Boundary dimension (a) inch - 0.567
Boundary dimension (r) mm - 0.794
Boundary dimension (r) inch - 0.03125
Minimum Push Fit (mm) - 6.332
Maximum Push Fit (mm) - 6.342
Minimum Drive Fit (mm) - 6.348
Maximum Drive Fit (mm) - 6.358
Minimum Press Fit (mm) - 6.353
Maximum Press Fit (mm) - 6.363
Basic Dynamic Load Rating (C) N - 8710
Basic Static Load Rating (C0) N - 12300
Shield Type Bearing with Cylindrical Outer Ring - CRY 14 V
Weight (kg) - 0.034
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
U - Rubber Seals at Each Side

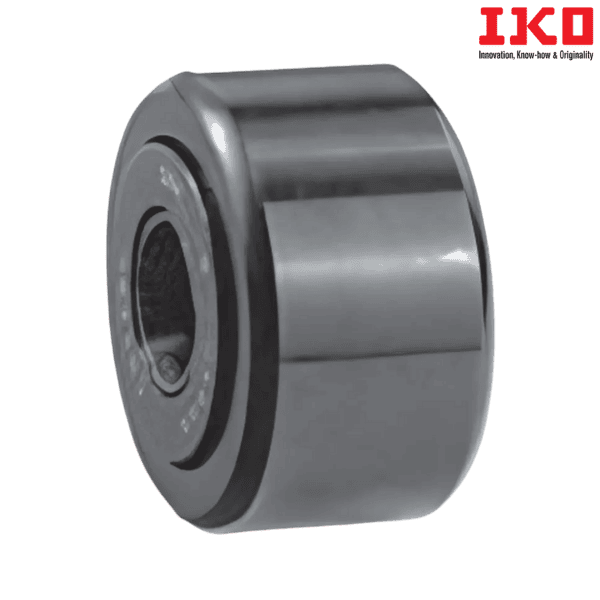

** Images are for representation purposes only
