Description
Brand - IKO
Item Number - CRY 12 VR IKO
Also Known As - CRY12VR
Category - Non-Separable Roller Followers, Inch Series Full Complement Type/With Inner Ring
Type - Shield Type (Crowned Outer Ring)
Shaft Diameter (mm) - 6.35
Shaft Diameter (inch) - 0.25

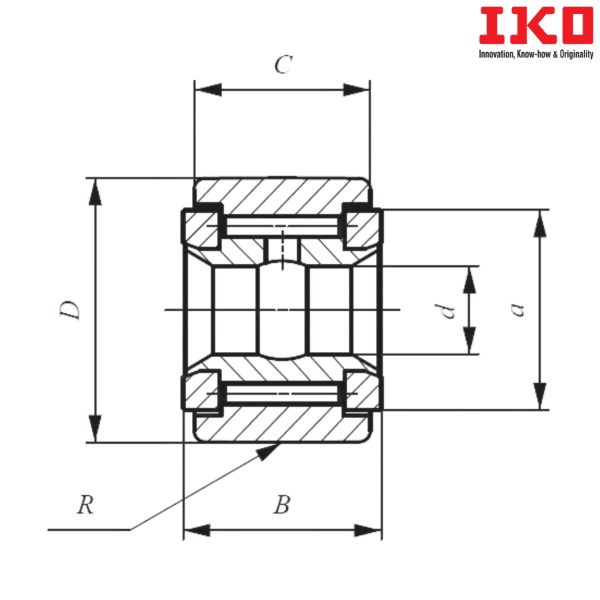

Bore Diameter (d) mm - 6.35
Bore Diameter (d) inch - 0.25
Outer Diameter (D) mm - 19.05
Outer Diameter (D) inch - 0.75
Width (B) mm - 14.288
Width (B) inch - 0.5625
Boundary dimension (C) mm - 12.7
Boundary dimension (C) inch - 0.5
Boundary dimension (a) mm - 14.4
Boundary dimension (a) inch - 0.567
Boundary dimension (R) mm - 250
Boundary dimension (R) inch - 10
Minimum Push Fit (mm) - 6.332
Maximum Push Fit (mm) - 6.342
Minimum Drive Fit (mm) - 6.348
Maximum Drive Fit (mm) - 6.358
Minimum Press Fit (mm) - 6.353
Maximum Press Fit (mm) - 6.363
Basic Dynamic Load Rating (C) N - 8710
Basic Static Load Rating (C0) N - 12300
Sealed Type Bearing with Crowned Outer Ring - CRY 12 VUUR
Weight (kg) - 0.024
Suffix Description :
V - Bearing Without Cage, with Full Complement of Rolling Elements
R - With Crowned Outer Ring

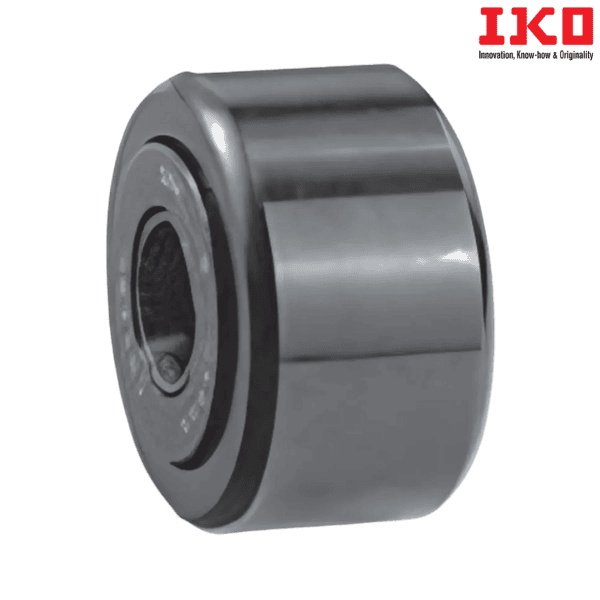

** Images are for representation purposes only
