CRH 9 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 9 VBUU IKO
Also Known As - CRH9VBUU
Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 9 VB
Stud Diameter (mm) - 6.35
Stud Diameter (inch) - 0.25
Weight (kg) - 0.015

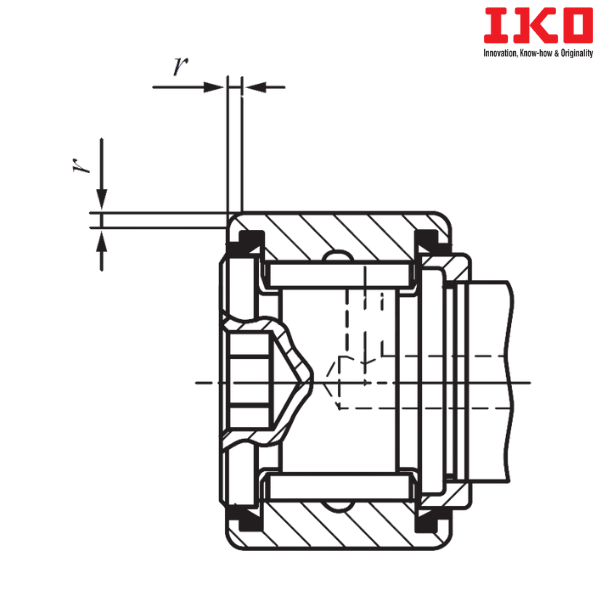

Outside Diameter of Outer Diameter (D) mm - 14.288
Outside Diameter of Outer Diameter (D) inch - 0.5625
Width of Outer Ring (C) mm - 9.525
Width of Outer Ring (C) inch - 0.375
Boundary Dimension (d1) mm - 6.35
Boundary Dimension (d1) inch - 0.25
G - 1/4 - 28
Boundary Dimension (G1) mm - 6.35
Boundary Dimension (G1) inch - 0.25
Maximum Boundary Dimension (B) mm - 11.1
Maximum Boundary Dimension (B) inch - 0.44
Boundary Dimension (B2) mm - 15.875
Boundary Dimension (B2) inch - 0.625
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (H) mm - 3.175
Boundary Dimension (H) inch - 0.125
Boundary Dimension (r) inch - 0.397
Boundary Dimension (r) mm - 0.015625

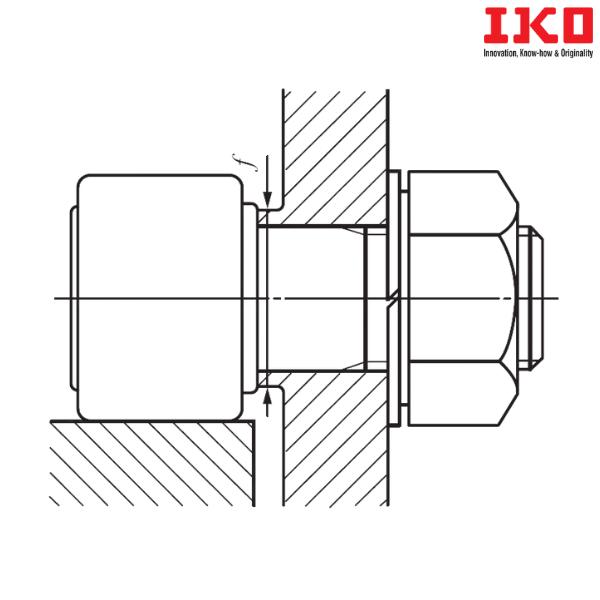

Minimum Mounting Dimension (f min) mm - 8.334
Minimum Mounting Dimension (f min) inch - 0.328125
Maximum Tightening Torque (N-m) - 3.4
Basic Dynamic Load Rating (C) N - 4710
Basic Static Load Rating (C0) N - 5410

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type
