Roll over image to zoom in Click on image to zoom

CRH 56 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 56 VBUU IKO
Also Known As - CRH56VBUU

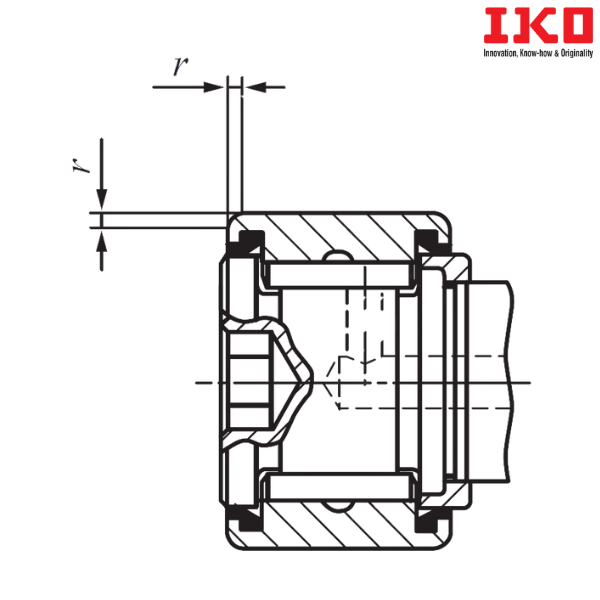

Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 56 VB
Stud Diameter (mm) - 44.45
Stud Diameter (inch) - 1.75
Weight (kg) - 3.24
Outside Diameter of Outer Diameter (D) mm - 88.9
Outside Diameter of Outer Diameter (D) inch - 3.5
Width of Outer Ring (C) mm - 50.8
Width of Outer Ring (C) inch - 2
Boundary Dimension (d1) mm - 44.45
Boundary Dimension (d1) inch - 1.75
G - 1 3/4 - 12UN
Boundary Dimension (G1) mm - 34.925
Boundary Dimension (G1) inch - 1.375
Maximum Boundary Dimension (B) mm - 52.8
Maximum Boundary Dimension (B) inch - 2.08
Boundary Dimension (B2) mm - 69.85
Boundary Dimension (B2) inch - 2.75
Boundary Dimension (B3) mm - 17.462
Boundary Dimension (B3) inch - 0.6875
Boundary Dimension (C1) mm - 1.588
Boundary Dimension (C1) inch - 0.0625
Boundary Dimension (g1) mm - 6.35
Boundary Dimension (g1) inch - 0.25
Boundary Dimension (g2) mm - 3.175
Boundary Dimension (g2) inch - 0.125
Boundary Dimension (H) mm - 19.05
Boundary Dimension (H) inch - 0.75
Boundary Dimension (r) inch - 2.381
Boundary Dimension (r) mm - 0.09375

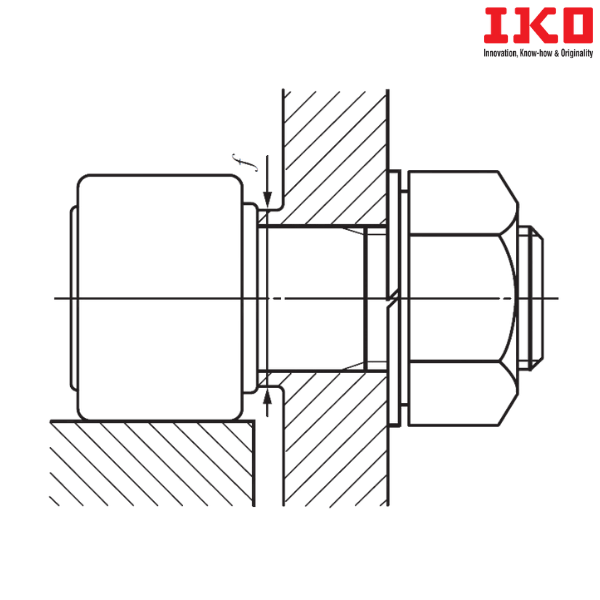

Minimum Mounting Dimension (f min) mm - 59.925
Minimum Mounting Dimension (f min) inch - 2.359375
Maximum Tightening Torque (N-m) - 1450
Basic Dynamic Load Rating (C) N - 111000
Basic Static Load Rating (C0) N - 239000

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type
