CRH 44 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 44 VBUU IKO
Also Known As - CRH44VBUU
Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 44 VB
Stud Diameter (mm) - 31.75
Stud Diameter (inch) - 1.25
Weight (kg) - 1.46
Outside Diameter of Outer Diameter (D) mm - 69.85
Outside Diameter of Outer Diameter (D) inch - 2.75
Width of Outer Ring (C) mm - 38.1
Width of Outer Ring (C) inch - 1.5

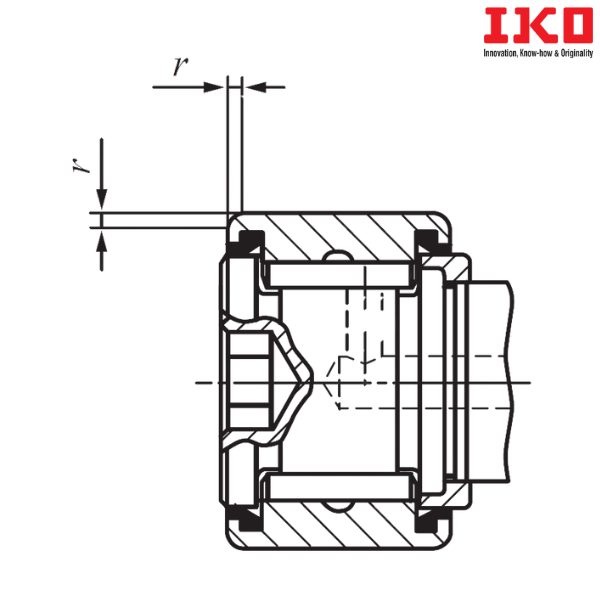

Boundary Dimension (d1) mm - 31.75
Boundary Dimension (d1) inch - 1.25
G - 1 1/4 - 12
Boundary Dimension (G1) mm - 28.575
Boundary Dimension (G1) inch - 1.125
Maximum Boundary Dimension (B) mm - 40
Maximum Boundary Dimension (B) inch - 1.57
Boundary Dimension (B2) mm - 57.15
Boundary Dimension (B2) inch - 2.25
Boundary Dimension (B3) mm - 14.288
Boundary Dimension (B3) inch - 0.5625
Boundary Dimension (C1) mm - 1.588
Boundary Dimension (C1) inch - 0.0625
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 3.175
Boundary Dimension (g2) inch - 0.125
Boundary Dimension (H) mm - 12.7
Boundary Dimension (H) inch - 0.5
Boundary Dimension (r) inch - 2.381
Boundary Dimension (r) mm - 0.09375

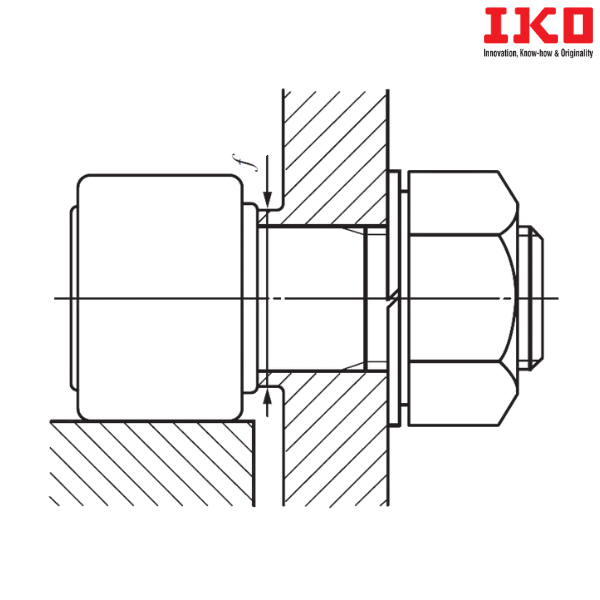

Minimum Mounting Dimension (f min) mm - 40.878
Minimum Mounting Dimension (f min) inch - 1.609375
Maximum Tightening Torque (N-m) - 500
Basic Dynamic Load Rating (C) N - 61400
Basic Static Load Rating (C0) N - 116000

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
