Roll over image to zoom in Click on image to zoom

CRH 22 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 22 VBUU IKO
Also Known As - CRH22VBUU
Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 22 VB
Stud Diameter (mm) - 19.05
Stud Diameter (inch) - 0.75
Weight (kg) - 0.2
Outside Diameter of Outer Diameter (D) mm - 34.925
Outside Diameter of Outer Diameter (D) inch - 1.375
Width of Outer Ring (C) mm - 19.05
Width of Outer Ring (C) inch - 0.75
Boundary Dimension (d1) mm - 19.05
Boundary Dimension (d1) inch - 0.75
G - 3/4 - 16
Boundary Dimension (G1) mm - 15.875
Boundary Dimension (G1) inch - 0.625
Maximum Boundary Dimension (B) mm - 21
Maximum Boundary Dimension (B) inch - 0.83
Boundary Dimension (B2) mm - 31.75
Boundary Dimension (B2) inch - 1.25
Boundary Dimension (B3) mm - 7.938
Boundary Dimension (B3) inch - 0.3125
Boundary Dimension (C1) mm - 1.588
Boundary Dimension (C1) inch - 0.0625
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (H) mm - 6.35
Boundary Dimension (H) inch - 0.25
Boundary Dimension (r) inch - 1.588
Boundary Dimension (r) mm - 0.0625

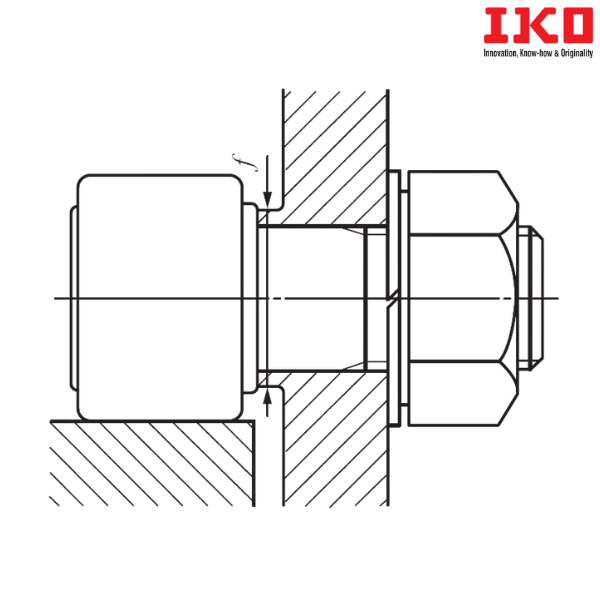

Minimum Mounting Dimension (f min) mm - 24.209
Minimum Mounting Dimension (f min) inch - 0.953125
Maximum Tightening Torque (N-m) - 103
Basic Dynamic Load Rating (C) N - 23600
Basic Static Load Rating (C0) N - 31700

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
