CRH 16 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 16 VBUU IKO
Also Known As - CRH16VBUU

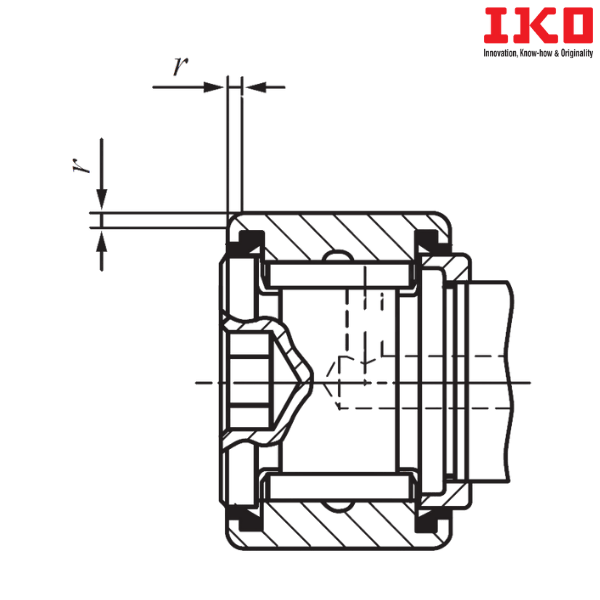

Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 16 VB
Stud Diameter (mm) - 15.875
Stud Diameter (inch) - 0.625
Weight (kg) - 0.093
Outside Diameter of Outer Diameter (D) mm - 25.4
Outside Diameter of Outer Diameter (D) inch - 1
Width of Outer Ring (C) mm - 15.875
Width of Outer Ring (C) inch - 0.625
Boundary Dimension (d1) mm - 15.875
Boundary Dimension (d1) inch - 0.625
G - 5/8 - 18
Boundary Dimension (G1) mm - 12.7
Boundary Dimension (G1) inch - 0.5
Maximum Boundary Dimension (B) mm - 17.9
Maximum Boundary Dimension (B) inch - 0.7
Boundary Dimension (B2) mm - 25.4
Boundary Dimension (B2) inch - 1
Boundary Dimension (B3) mm - 6.35
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 1.588
Boundary Dimension (C1) inch - 0.0625
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (H) mm - 6.35
Boundary Dimension (H) inch - 0.25
Boundary Dimension (r) inch - 1.191
Boundary Dimension (r) mm - 0.046875

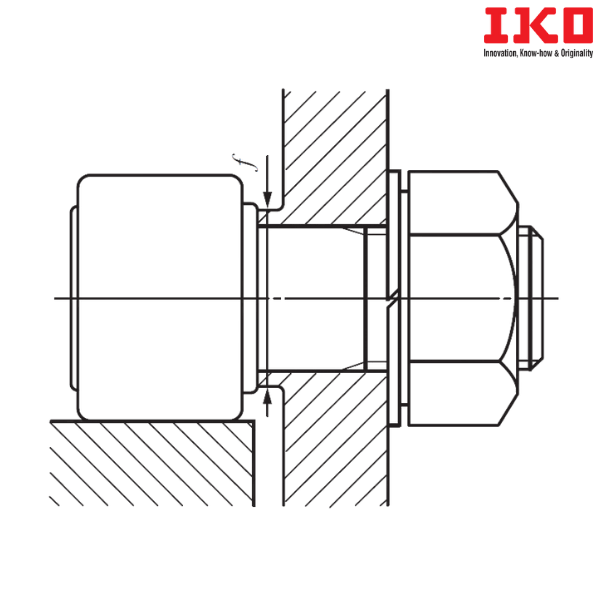

Minimum Mounting Dimension (f min) mm - 18.256
Minimum Mounting Dimension (f min) inch - 0.71875
Maximum Tightening Torque (N-m) - 57.8
Basic Dynamic Load Rating (C) N - 13100
Basic Static Load Rating (C0) N - 22700

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
