CRH 12 VBUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Heavy Duty Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CRH 12 VBUU IKO
Also Known As - CRH12VBUU
Type - Sealed Type with Cylindrical Outer Ring
Shield Type - CRH 12 VB
Stud Diameter (mm) - 11.112
Stud Diameter (inch) - 0.4375
Weight (kg) - 0.039
Outside Diameter of Outer Diameter (D) mm - 19.05
Outside Diameter of Outer Diameter (D) inch - 0.75
Width of Outer Ring (C) mm - 12.7
Width of Outer Ring (C) inch - 0.5
Boundary Dimension (d1) mm - 11.112
Boundary Dimension (d1) inch - 0.4375
G - 7/16 - 20
Boundary Dimension (G1) mm - 9.525
Boundary Dimension (G1) inch - 0.375
Maximum Boundary Dimension (B) mm - 14.6
Maximum Boundary Dimension (B) inch - 0.57
Boundary Dimension (B2) mm - 22.225
Boundary Dimension (B2) inch - 0.875
Boundary Dimension (B3) mm - 6.35
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (H) mm - 4.762
Boundary Dimension (H) inch - 0.1875
Boundary Dimension (r) inch - 0.794
Boundary Dimension (r) mm - 0.03125

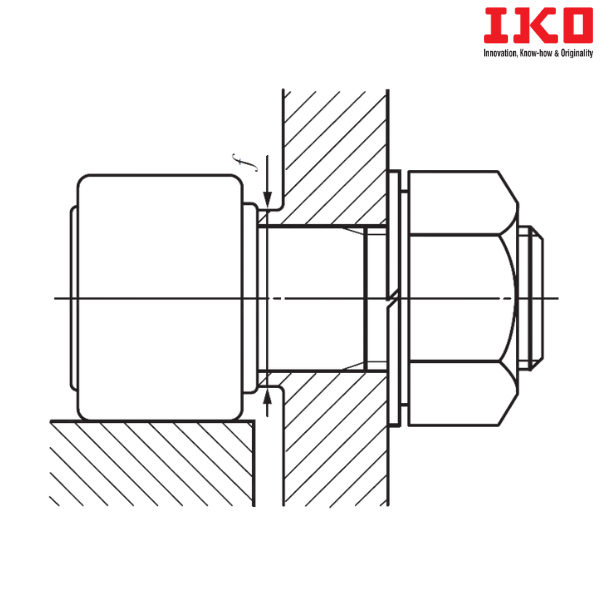

Minimum Mounting Dimension (f min) mm - 13.494
Minimum Mounting Dimension (f min) inch - 0.53125
Maximum Tightening Torque (N-m) - 17.6
Basic Dynamic Load Rating (C) N - 8710
Basic Static Load Rating (C0) N - 12300

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CRH.....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
