Description
Brand - IKO
Item Number - CRBTF 405 AT IKO
Also Known As - CRBTF405AT
Category - Mounting Holed Type Super Slim Crossed Roller Bearing
Shaft Diameter (mm) - 40

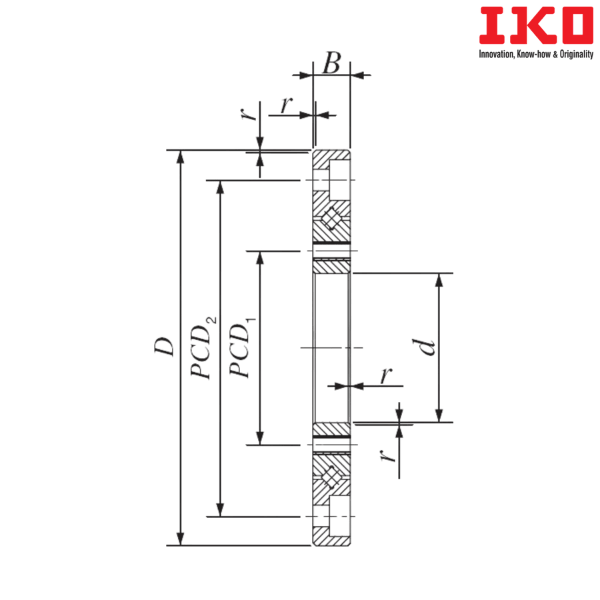

Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 73
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15
Mounting Hole (PCD1) mm - 46
Inner Ring of Mounting Holes - 8-M2.5 through
Mounting Hole (PCD2) mm - 65
Outer Ring of Mounting Holes - 8-φ2.9 through φ5.5 counter bore depth 2.8

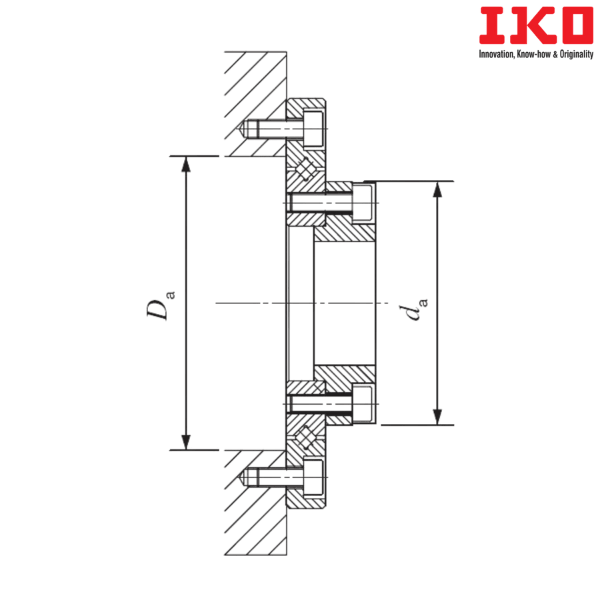

Mounting Dimension (da) mm - 51.5
Mounting Dimension (Da) mm - 58
Basic Dynamic Load Rating (C) N - 2440
Basic Static Load Rating (C0) N - 3490
Weight (kg) - 0.103

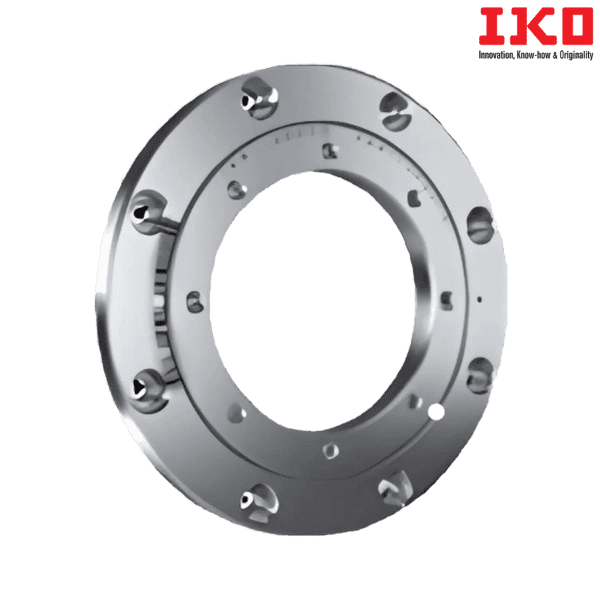

** Images are for representation purposes only
