Description
Brand - IKO
Item Number - CRBTF 205 AT IKO
Also Known As - CRBTF205AT
Category - Mounting Holed Type Super Slim Crossed Roller Bearing
Shaft Diameter (mm) - 20

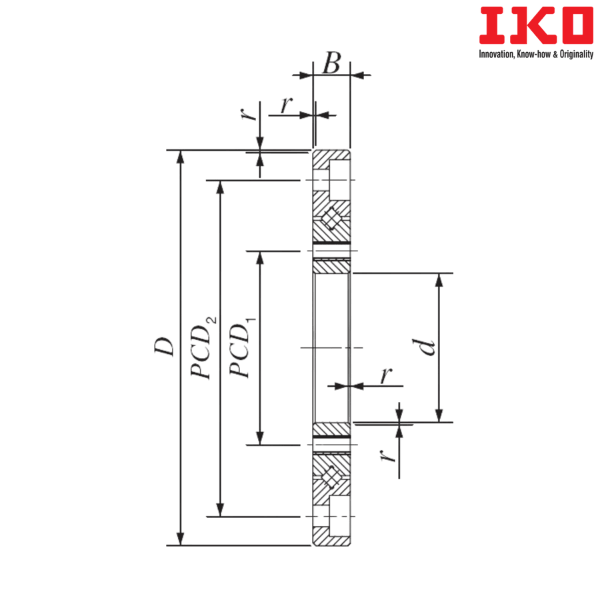

Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 53
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15
Mounting Hole (PCD1) mm - 26
Inner Ring of Mounting Holes - 6-M2.5 through
Mounting Hole (PCD2) mm - 45
Outer Ring of Mounting Holes - 6-φ2.9 through φ5. 5 counter bore depth 2.8

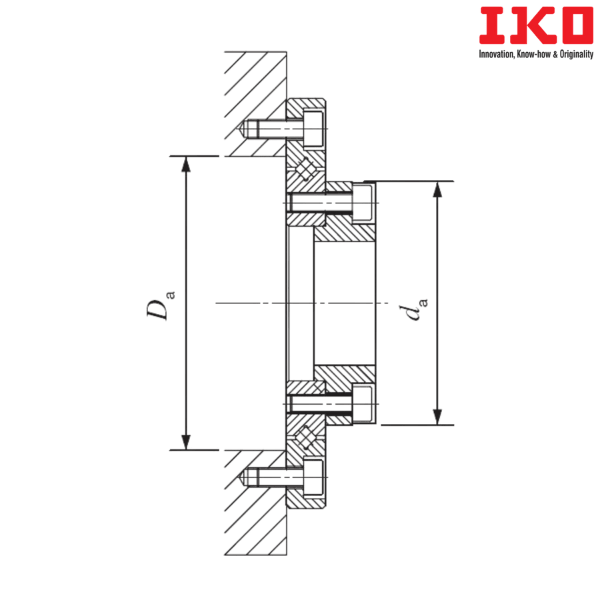

Mounting Dimension (da) mm - 31.5
Mounting Dimension (Da) mm - 38
Basic Dynamic Load Rating (C) N - 1890
Basic Static Load Rating (C0) N - 2150
Weight (kg) - 0.066

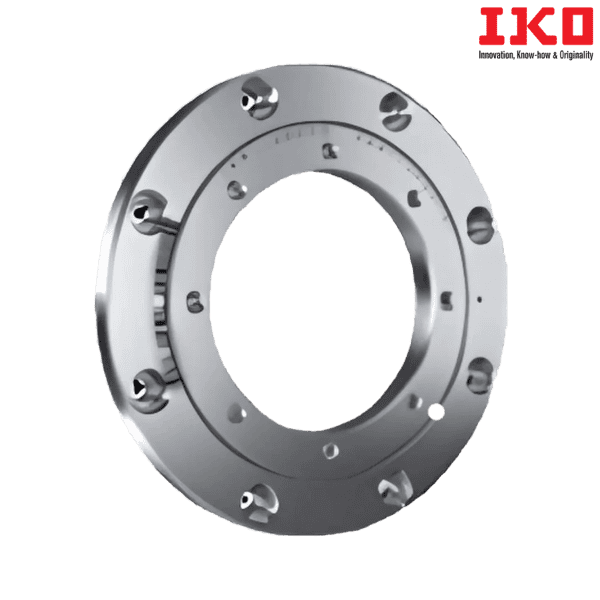

** Images are for representation purposes only
