Description
Brand - IKO
Item Number - CRBTF 105 AT IKO
Also Known As - CRBTF105AT
Category - Mounting Holed Type Super Slim Crossed Roller Bearing
Shaft Diameter (mm) - 10

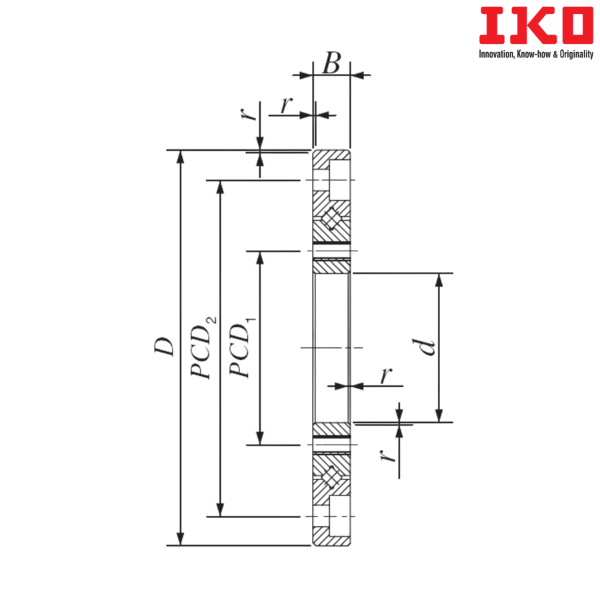

Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 43
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15
Mounting Hole (PCD1) mm - 16
Inner Ring of Mounting Holes - 6-M2.5 through
Mounting Hole (PCD2) mm - 35
Outer Ring of Mounting Holes - 6-φ2.9 through φ5.5 counter bore depth 2.8

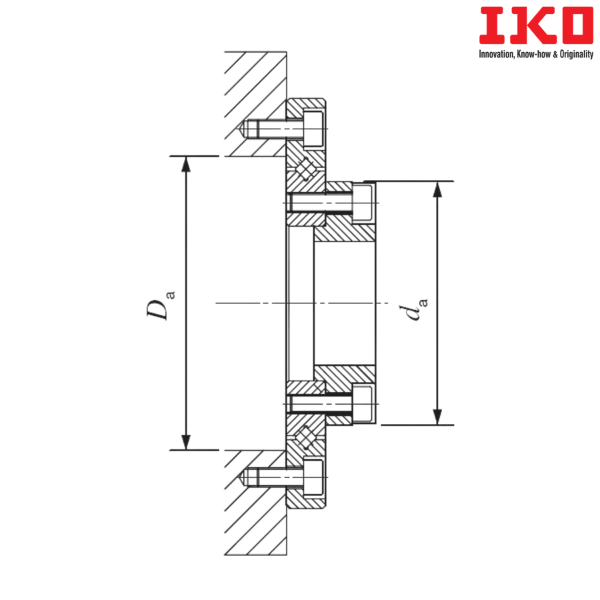

Mounting Dimension (da) mm - 21.5
Mounting Dimension (Da) mm - 28
Basic Dynamic Load Rating (C) N - 1500
Basic Static Load Rating (C0) N - 1410
Weight (kg) - 0.046

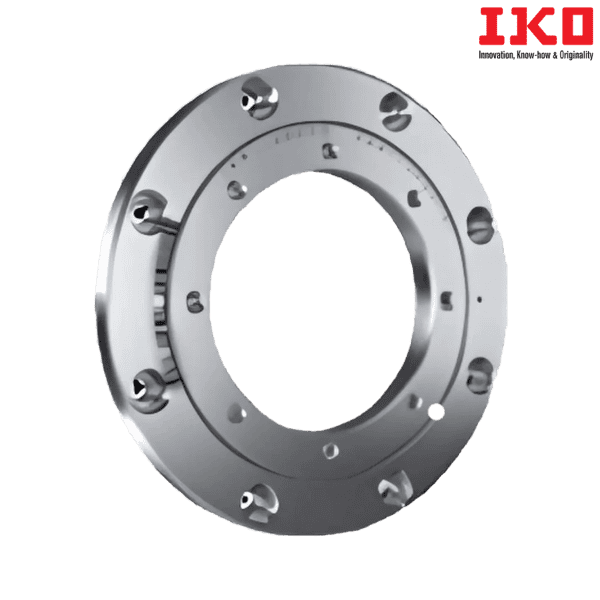

** Images are for representation purposes only
