Description
Brand - IKO
Item Number - CRBT 505 A IKO
Also Known As - CRBT505A
Category - Open Type Super Slim Type Crossed Roller Bearing with Separator
Shaft Diameter (mm) - 50

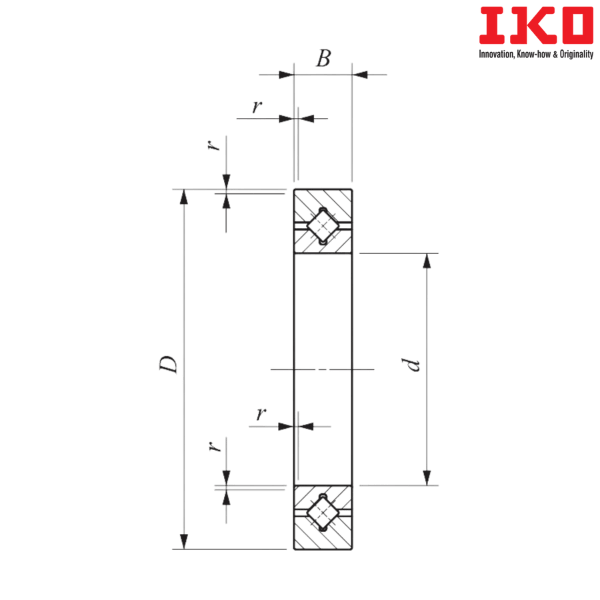

Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 61
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15

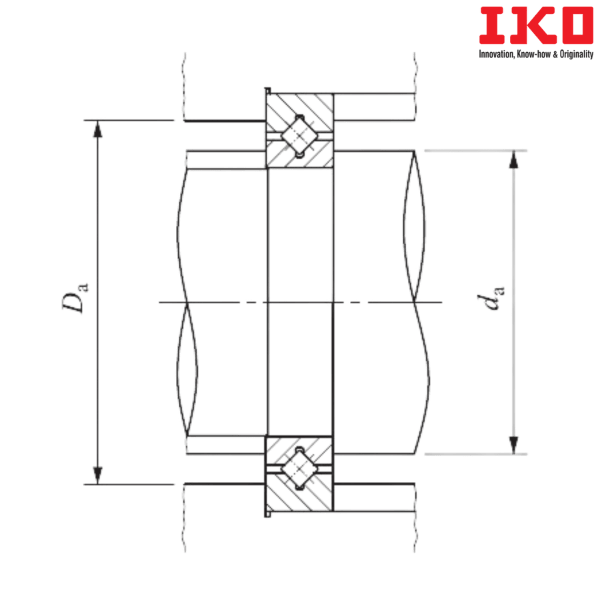

Mounting Dimension (da) mm - 52.5
Mounting Dimension (Da) mm - 57
Basic Dynamic Load Rating (C) N - 2 280
Basic Static Load Rating (C0) N - 3200
Weight (kg) - 0.0323

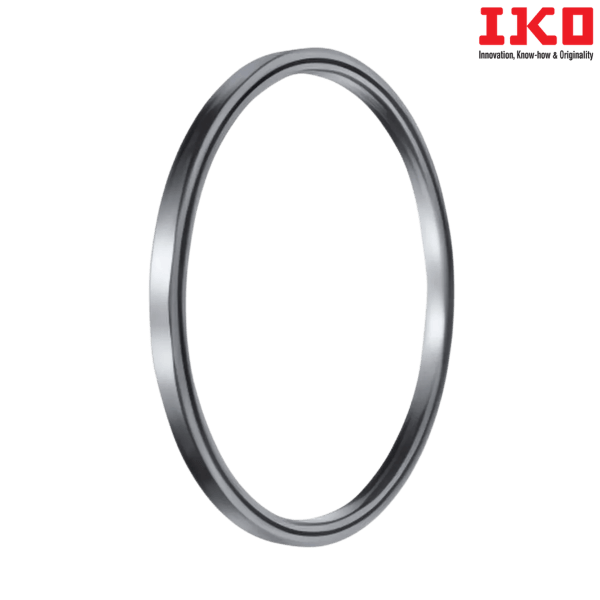

** Images are for representation purposes only
