Description
Brand - IKO
Item Number - CRBT 405 A IKO
Also Known As - CRBT405A

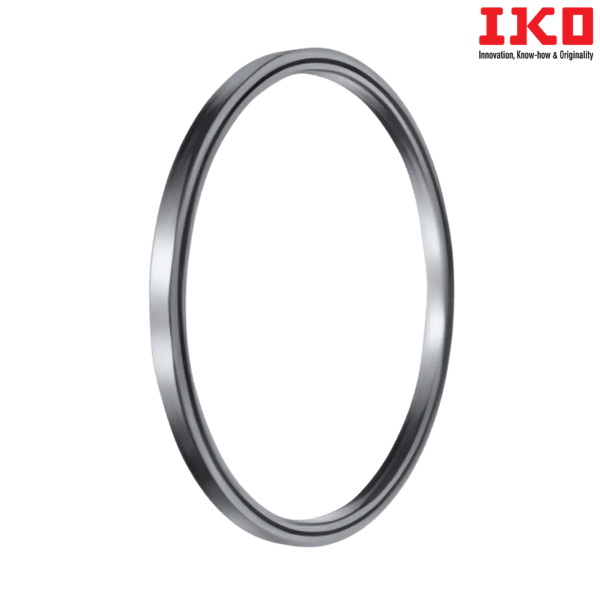

Category - Open Type Super Slim Type Crossed Roller Bearing with Separator
Shaft Diameter (mm) - 40

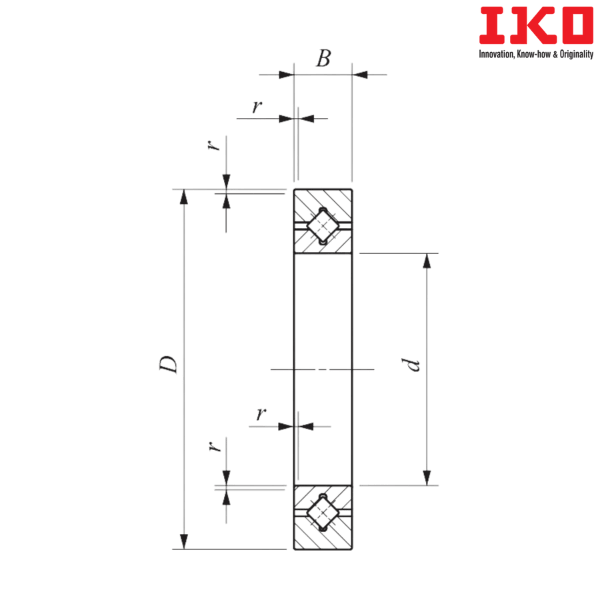

Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 51
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15

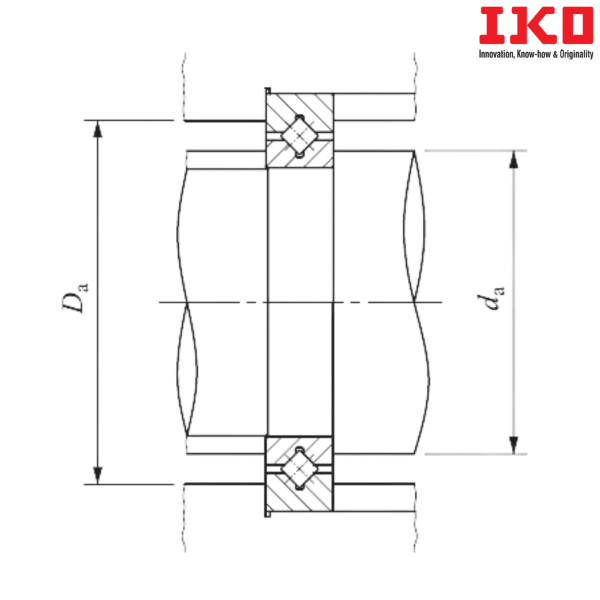

Mounting Dimension (da) mm - 42.5
Mounting Dimension (Da) mm - 47
Basic Dynamic Load Rating (C) N - 2 000
Basic Static Load Rating (C0) N - 2520
Weight (kg) - 0.0265
** Images are for representation purposes only
