Description
Brand - IKO
Item Number - CRBT 305 A IKO
Also Known As - CRBT305A
Category - Open Type Super Slim Type Crossed Roller Bearing with Separator
Shaft Diameter (mm) - 30

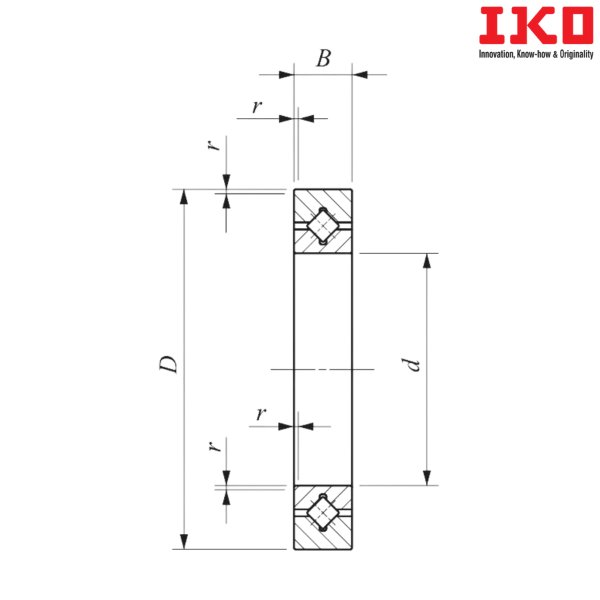

Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 41
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15

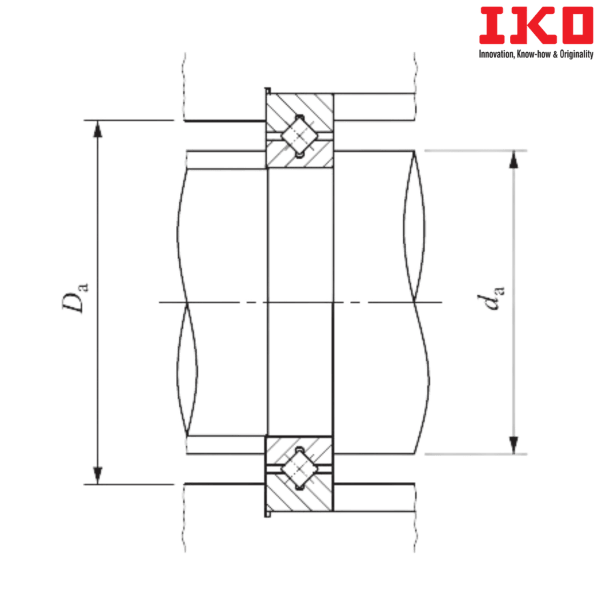

Mounting Dimension (da) mm - 32.5
Mounting Dimension (Da) mm - 37
Basic Dynamic Load Rating (C) N - 1 770
Basic Static Load Rating (C0) N - 1970
Weight (kg) - 0.0207
** Images are for representation purposes only
