Description
Brand - IKO
Item Number - CRBT 155 A IKO
Also Known As - CRBT155A
Category - Open Type Super Slim Type Crossed Roller Bearing with Separator

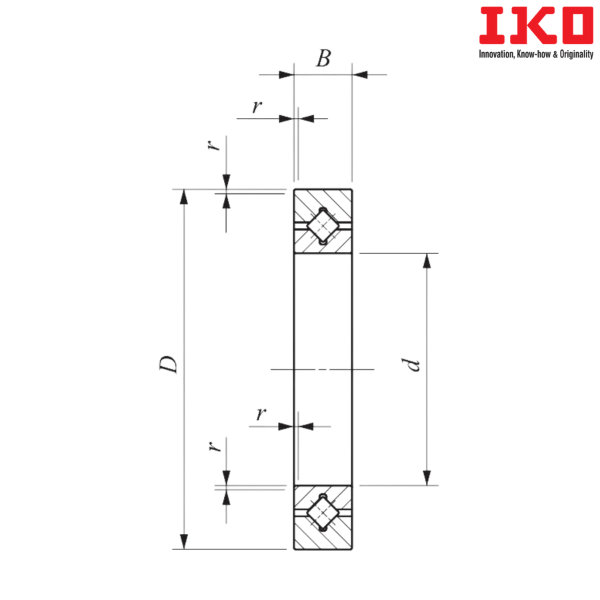

Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 26
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15

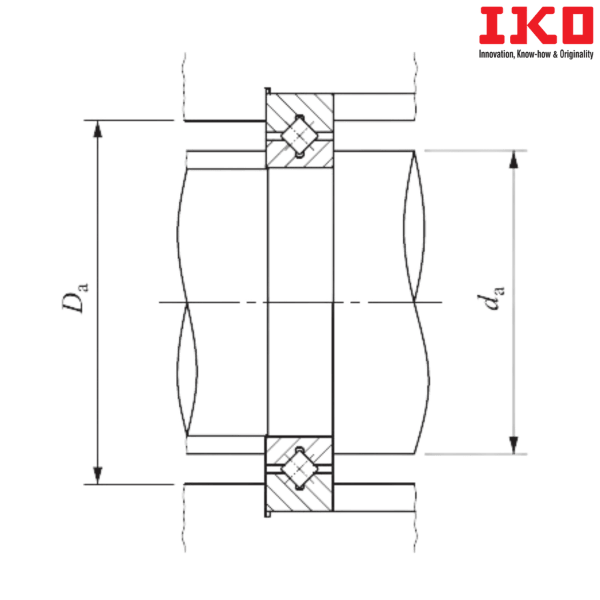

Mounting Dimension (da) mm - 17.5
Mounting Dimension (Da) mm - 22
Basic Dynamic Load Rating (C) N - 1 320
Basic Static Load Rating (C0) N - 1110
Weight (kg) - 0.0119

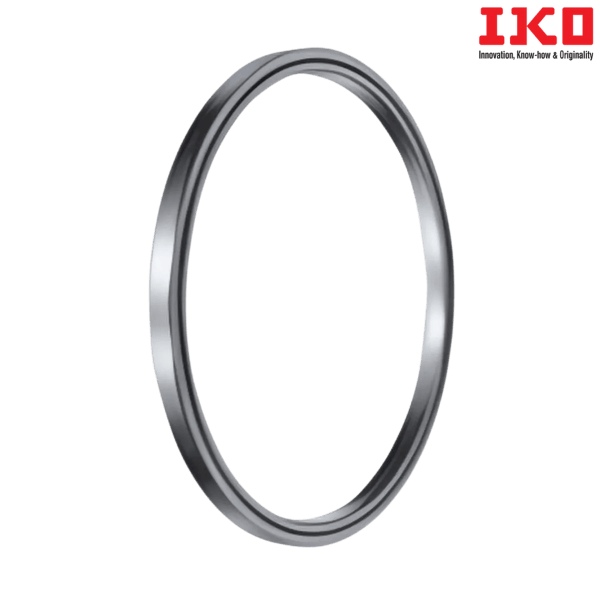

** Images are for representation purposes only
