Description
Brand - IKO
Item Number - CRBT 105 A IKO
Also Known As - CRBT105A

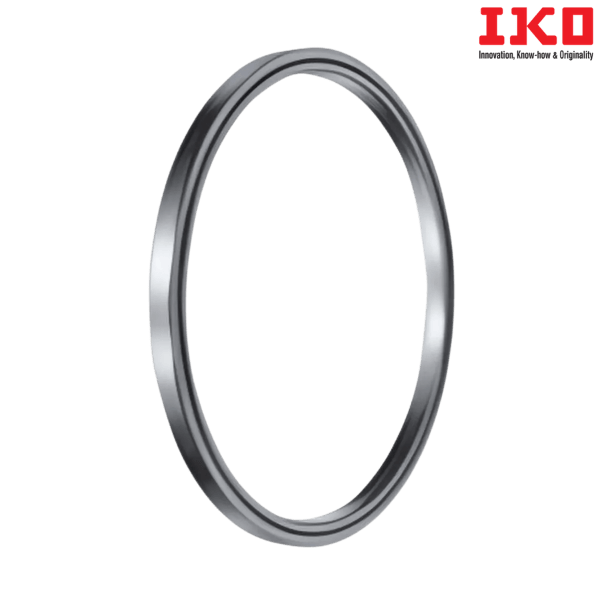

Category - Open Type Super Slim Type Crossed Roller Bearing with Separator
Shaft Diameter (mm) - 10

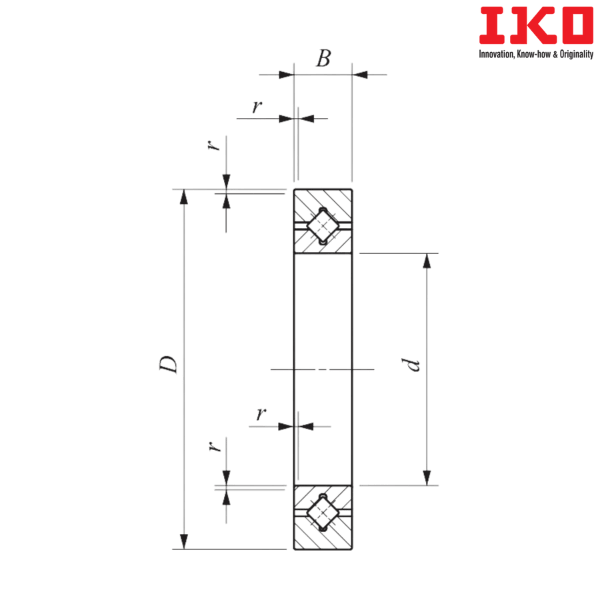

Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 21
Width (B) mm - 5
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.15

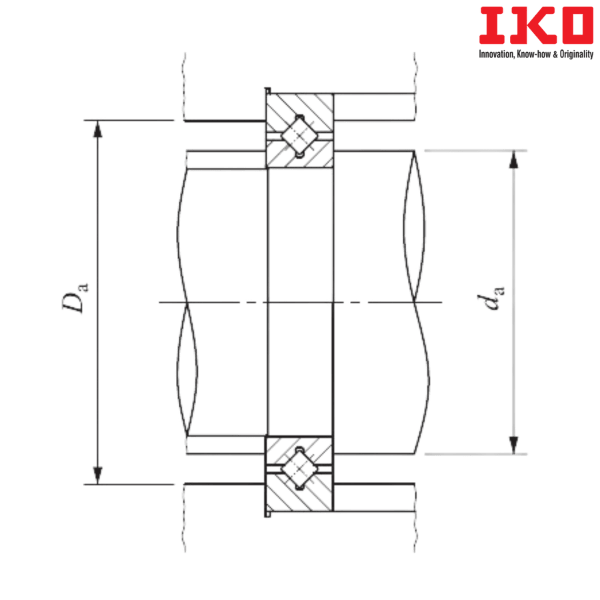

Mounting Dimension (da) mm - 12.5
Mounting Dimension (Da) mm - 17
Basic Dynamic Load Rating (C) N - 1 120
Basic Static Load Rating (C0) N - 811
Weight (kg) - 0.009
** Images are for representation purposes only
