Description
Brand - IKO
Item Number - CRBS 908 IKO
Also Known As - CRBS908

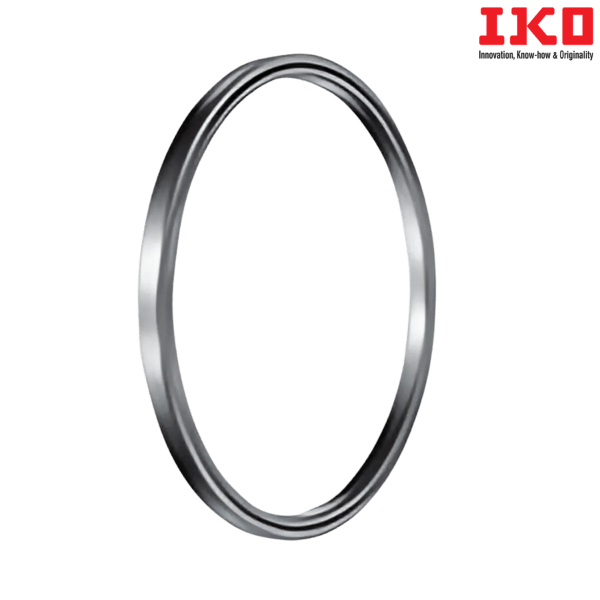

Category - Open and Slim Type Crossed Roller Bearing with Cage

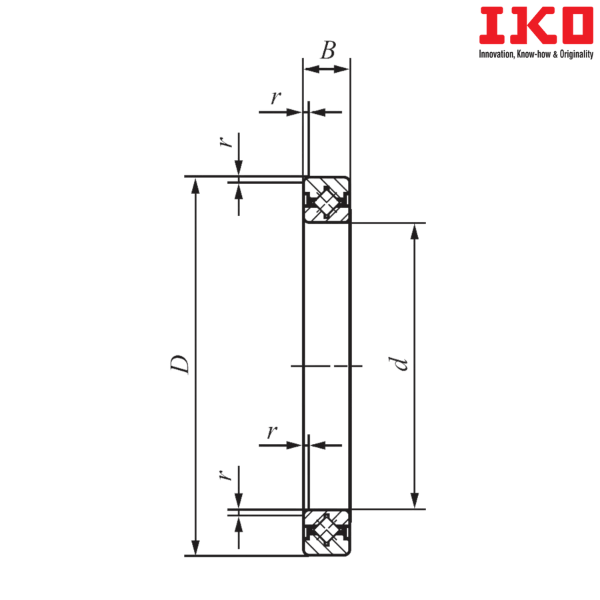

Shaft Diameter (mm) - 90
Bore Diameter (d) mm - 90
Outer Diameter (D) mm - 106
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4

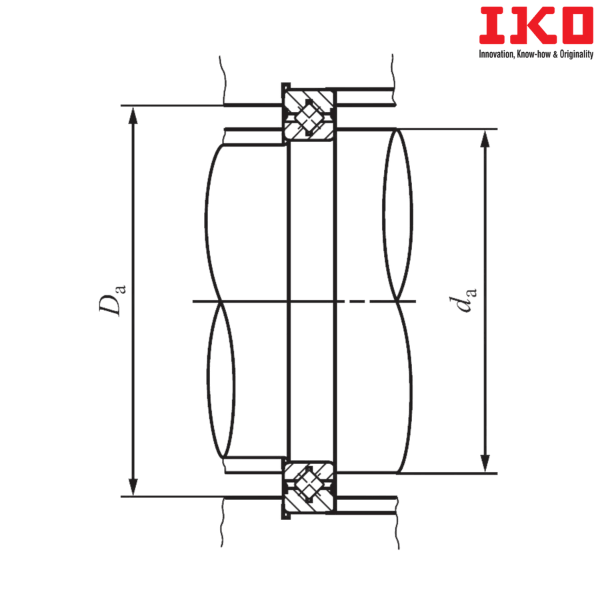

Mounting Dimension (da) mm - 94
Mounting Dimension (Da) mm - 101
Basic Dynamic Load Rating (C) N - 6490
Basic Static Load Rating (C0) N - 10700
Weight (kg) - 0.135
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 908 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 908 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 908 V UU
** Images are for representation purposes only
