Description
Brand - IKO
Item Number - CRBS 808 IKO
Also Known As - CRBS808
Category - Open and Slim Type Crossed Roller Bearing with Cage

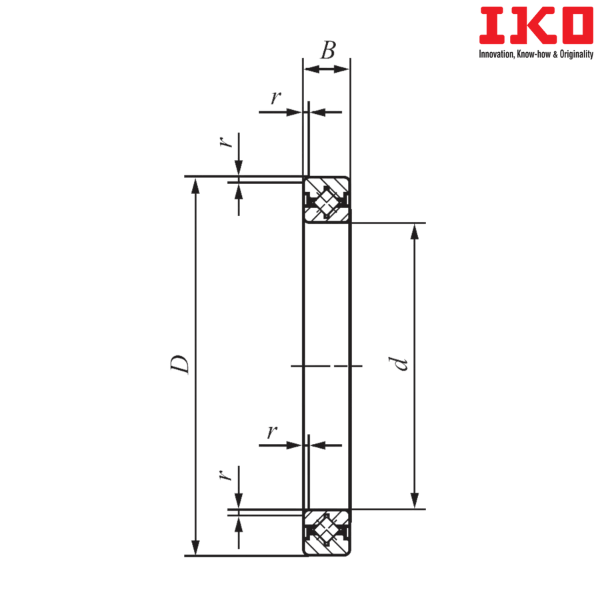

Shaft Diameter (mm) - 80
Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 96
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4
Mounting Dimension (da) mm - 84
Mounting Dimension (Da) mm - 91
Basic Dynamic Load Rating (C) N - 6130
Basic Static Load Rating (C0) N - 9590
Weight (kg) - 0.122
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 808 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 808 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 808 V UU
** Images are for representation purposes only
