Description
Brand - IKO
Item Number - CRBS 708 IKO
Also Known As - CRBS708
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 70

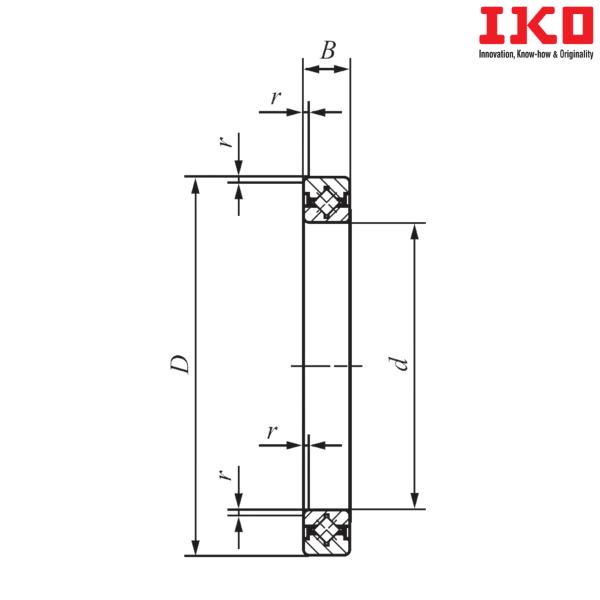

Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 86
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4

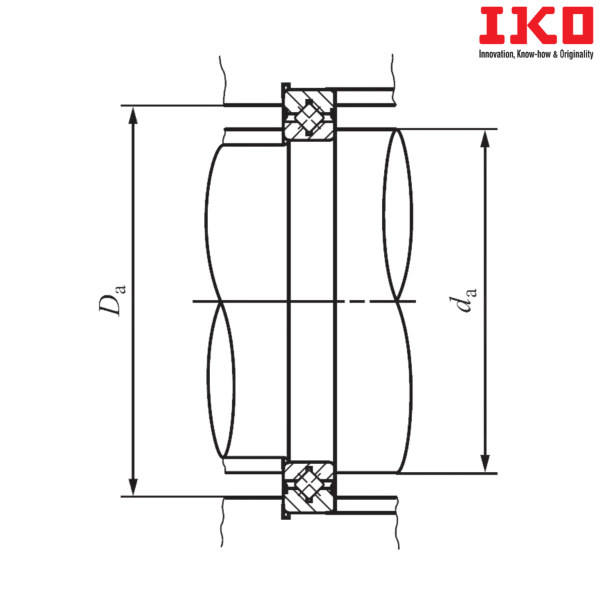

Mounting Dimension (da) mm - 74
Mounting Dimension (Da) mm - 81
Basic Dynamic Load Rating (C) N - 5740
Basic Static Load Rating (C0) N - 8440
Weight (kg) - 0.108
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 708 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 708 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 708 V UU

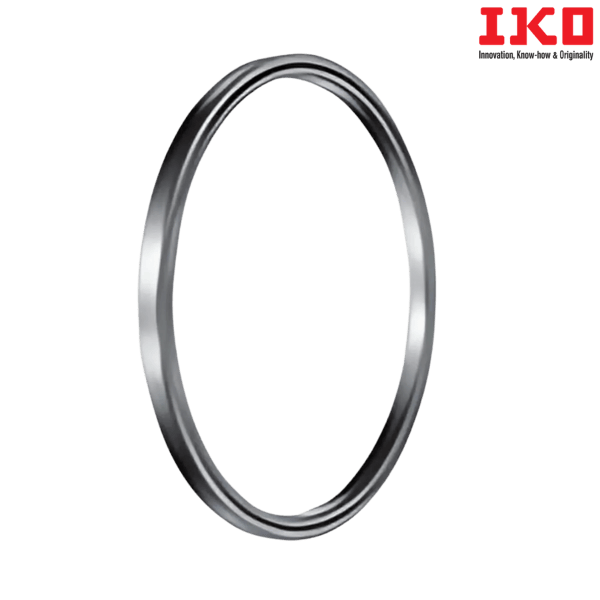

** Images are for representation purposes only
