Description
Brand - IKO
Item Number - CRBS 608 IKO
Also Known As - CRBS608

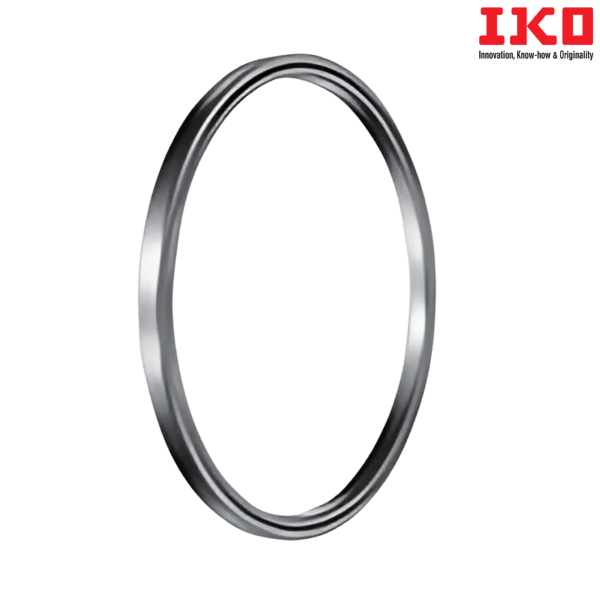

Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 60

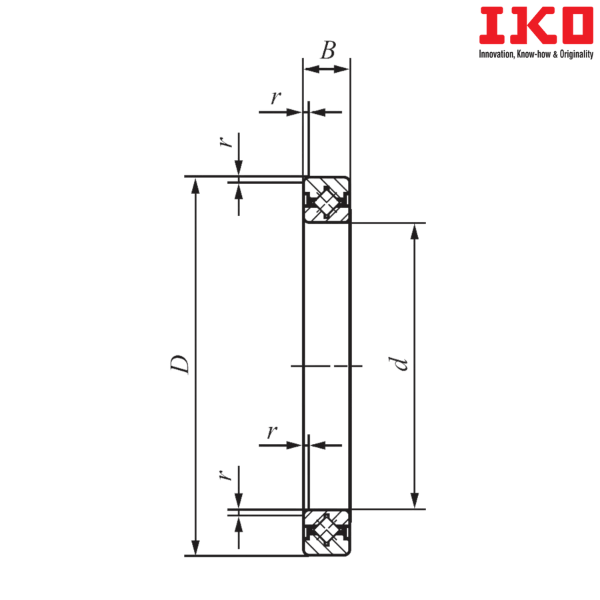

Bore Diameter (d) mm - 60
Outer Diameter (D) mm - 76
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4

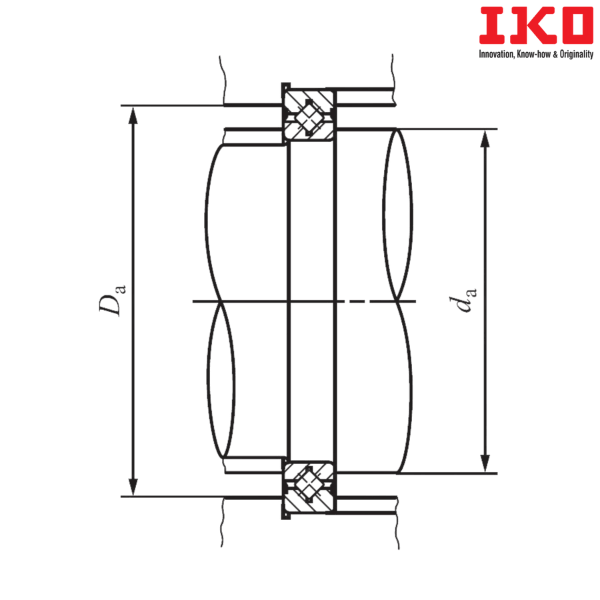

Mounting Dimension (da) mm - 64
Mounting Dimension (Da) mm - 71
Basic Dynamic Load Rating (C) N - 5350
Basic Static Load Rating (C0) N - 7310
Weight (kg) - 0.094
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 608 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 608 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 608 V UU
** Images are for representation purposes only
