Description
Brand - IKO
Item Number - CRBS 20013 IKO
Also Known As - CRBS20013
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 200

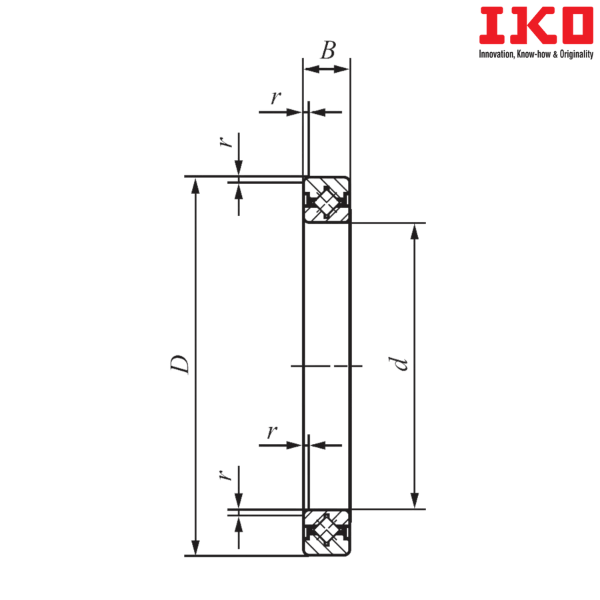

Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 226
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6

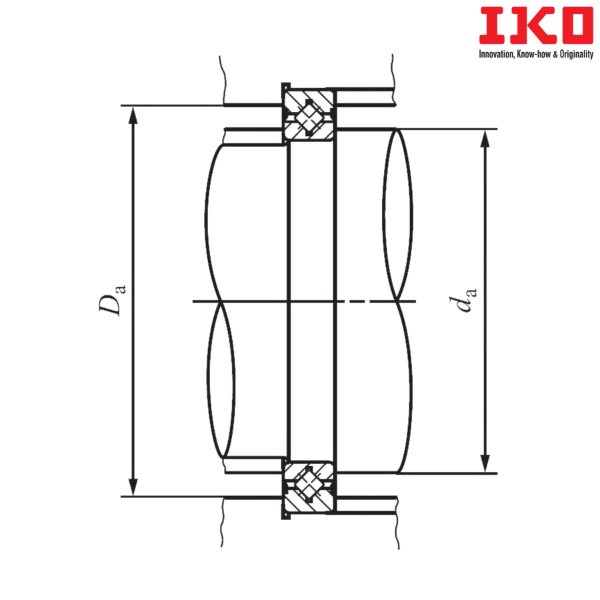

Mounting Dimension (da) mm - 206
Mounting Dimension (Da) mm - 219
Basic Dynamic Load Rating (C) N - 22500
Basic Static Load Rating (C0) N - 49300
Weight (kg) - 0.78
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 20013 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 20013 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 20013 V UU

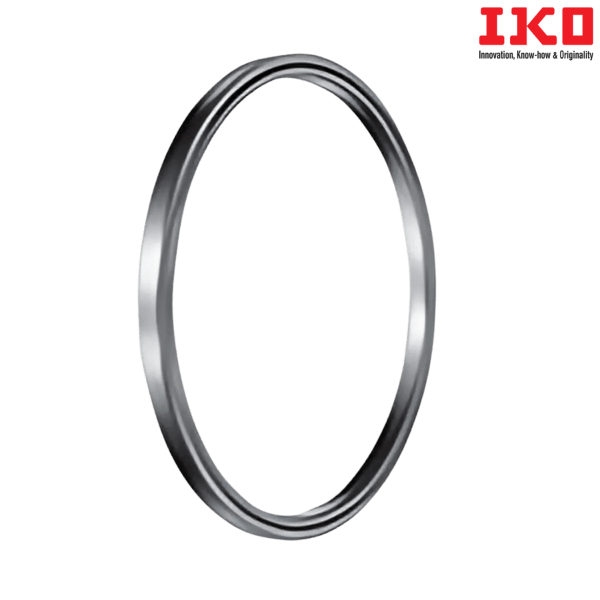

** Images are for representation purposes only
