Description
Brand - IKO
Item Number - CRBS 19013 IKO
Also Known As - CRBS19013
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 190

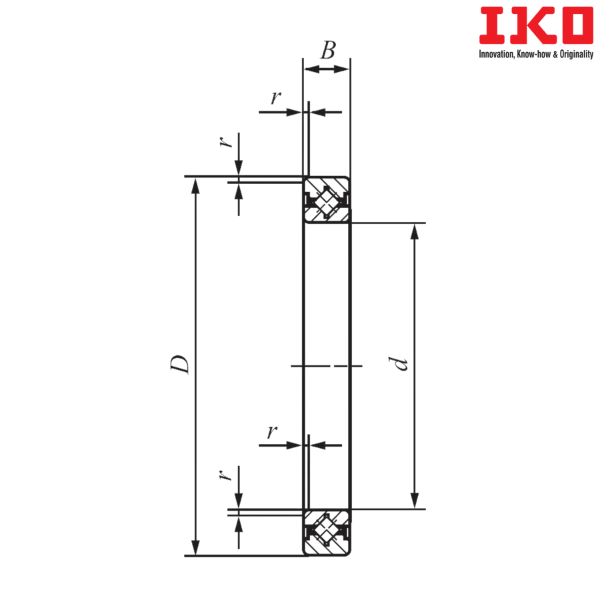

Bore Diameter (d) mm - 190
Outer Diameter (D) mm - 216
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 196
Mounting Dimension (Da) mm - 209
Basic Dynamic Load Rating (C) N - 22100
Basic Static Load Rating (C0) N - 46900
Weight (kg) - 0.74
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 19013 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 19013 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 19013 V UU
** Images are for representation purposes only
