Description
Brand - IKO
Item Number - CRBS 17013 IKO
Also Known As - CRBS17013
Category - Open and Slim Type Crossed Roller Bearing with Cage

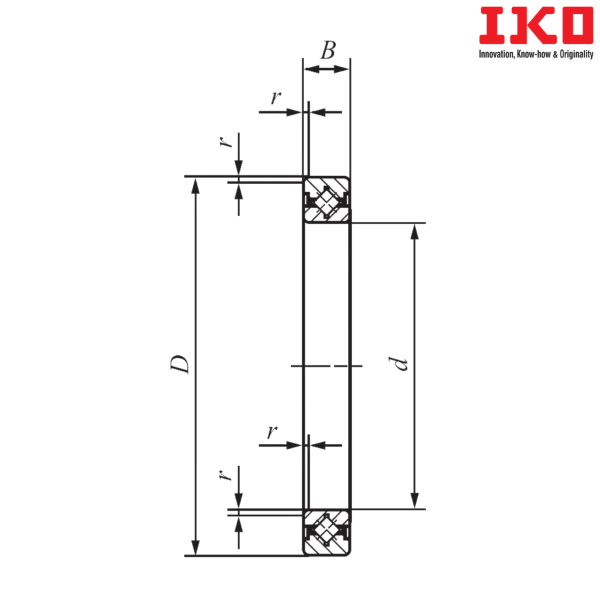

Shaft Diameter (mm) - 170
Bore Diameter (d) mm - 170
Outer Diameter (D) mm - 196
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 176
Mounting Dimension (Da) mm - 189
Basic Dynamic Load Rating (C) N - 20900
Basic Static Load Rating (C0) N - 42200
Weight (kg) - 0.675
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 17013 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 17013 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 17013 V UU
** Images are for representation purposes only
