Description
Brand - IKO
Item Number - CRBS 16013 IKO
Also Known As - CRBS16013
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 160
Bore Diameter (d) mm - 160
Outer Diameter (D) mm - 186
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 166
Mounting Dimension (Da) mm - 179
Basic Dynamic Load Rating (C) N - 20300
Basic Static Load Rating (C0) N - 39900
Weight (kg) - 0.62
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 16013 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 16013 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 16013 V UU

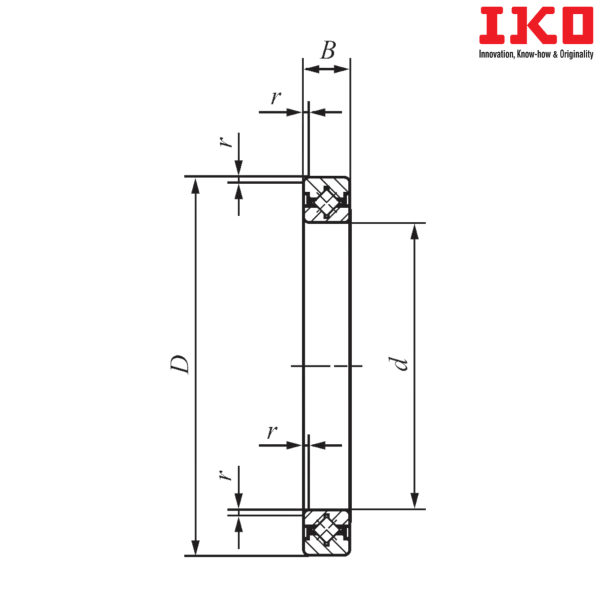

** Images are for representation purposes only
