Description
Brand - IKO
Item Number - CRBS 1508 IKO
Also Known As - CRBS1508
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 150
Bore Diameter (d) mm - 150
Outer Diameter (D) mm - 166
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4
Mounting Dimension (da) mm - 154
Mounting Dimension (Da) mm - 161
Basic Dynamic Load Rating (C) N - 8350
Basic Static Load Rating (C0) N - 17500
Weight (kg) - 0.22
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 1508 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1508 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1508 V UU

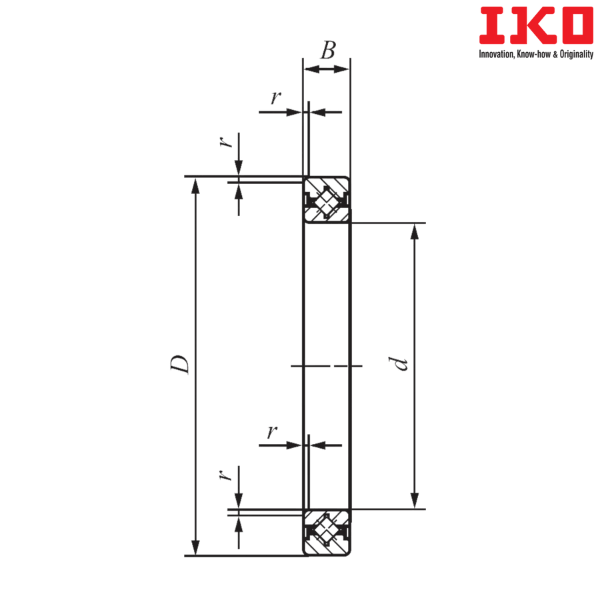

** Images are for representation purposes only
