Description
Brand - IKO
Item Number - CRBS 1408 IKO
Also Known As - CRBS1408
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 140

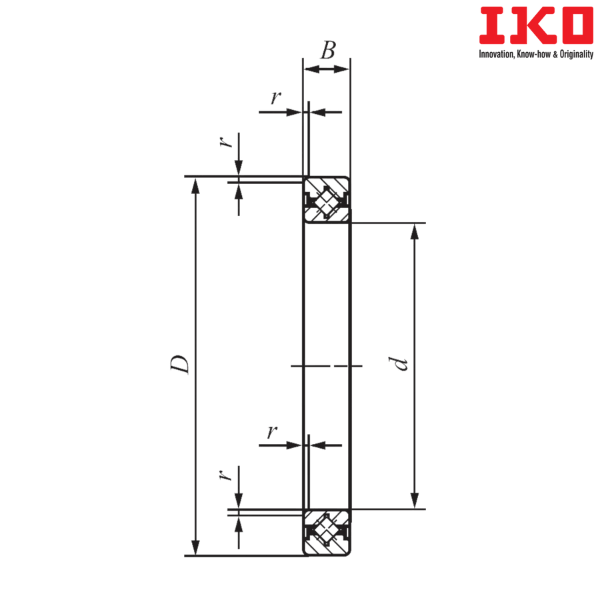

Bore Diameter (d) mm - 140
Outer Diameter (D) mm - 156
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4

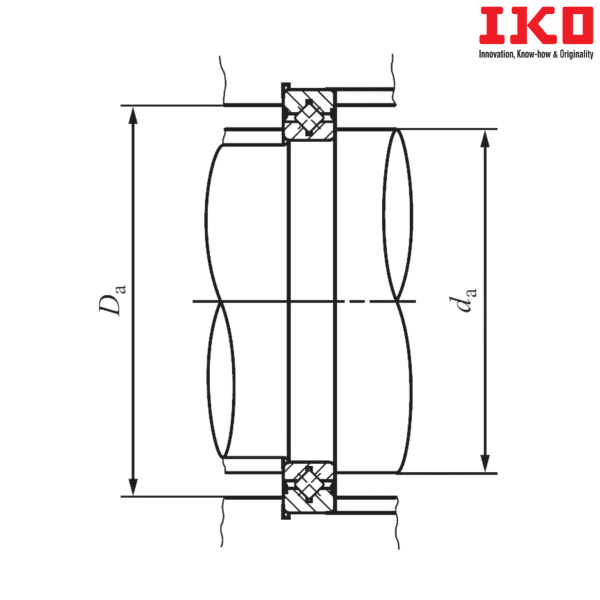

Mounting Dimension (da) mm - 144
Mounting Dimension (Da) mm - 151
Basic Dynamic Load Rating (C) N - 8060
Basic Static Load Rating (C0) N - 16400
Weight (kg) - 0.205
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 1408 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1408 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1408 V UU
** Images are for representation purposes only
