Description
Brand - IKO
Item Number - CRBS 1108 IKO
Also Known As - CRBS1108
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 110
Bore Diameter (d) mm - 110
Outer Diameter (D) mm - 126
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4
Mounting Dimension (da) mm - 114
Mounting Dimension (Da) mm - 121
Basic Dynamic Load Rating (C) N - 7160
Basic Static Load Rating (C0) N - 13000
Weight (kg) - 0.163
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 1108 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1108 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1108 V UU

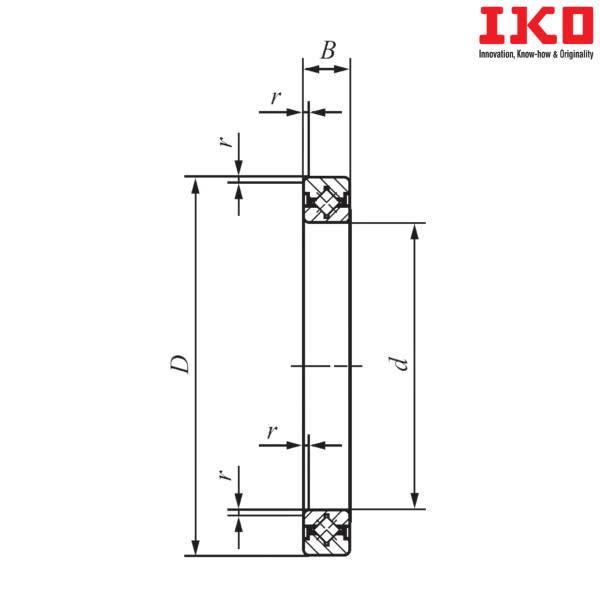

** Images are for representation purposes only
