Description
Brand - IKO
Item Number - CRBS 1008 IKO
Also Known As - CRBS1008
Category - Open and Slim Type Crossed Roller Bearing with Cage
Shaft Diameter (mm) - 100

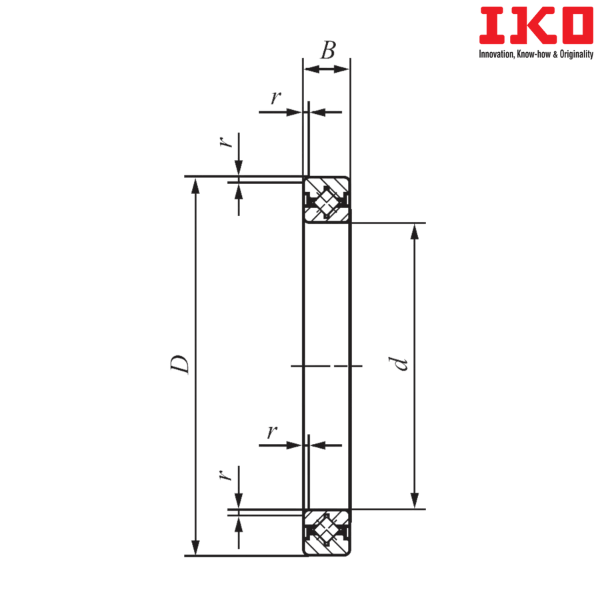

Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 116
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.4
Mounting Dimension (da) mm - 104
Mounting Dimension (Da) mm - 111
Basic Dynamic Load Rating (C) N - 6850
Basic Static Load Rating (C0) N - 11900
Weight (kg) - 0.152
Sealed and Slim Type Crossed Roller Bearing with Separator - CRBS 1008 A UU
Open and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1008 V
Sealed and Slim Type Crossed Roller Bearing with Full Complement Type - CRBS 1008 V UU
** Images are for representation purposes only
