Description
Brand - IKO
Item Number - CRBFV 9025 AD IKO
Also Known As - CRBFV9025AD
Category - Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 90
Bore Diameter (d) mm - 90
Outer Diameter (D) mm - 210
Width (B) mm - 25
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 1.5
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 1.5
Mounting Hole (PCD1) mm - 112
Inner Ring of Mounting Holes - 12- φ 9 through φ 14 counter bore depth 12
Mounting Hole (PCD2) mm - 187
Outer Ring of Mounting Holes - 12-φ9 through φ14 counter bore depth 12

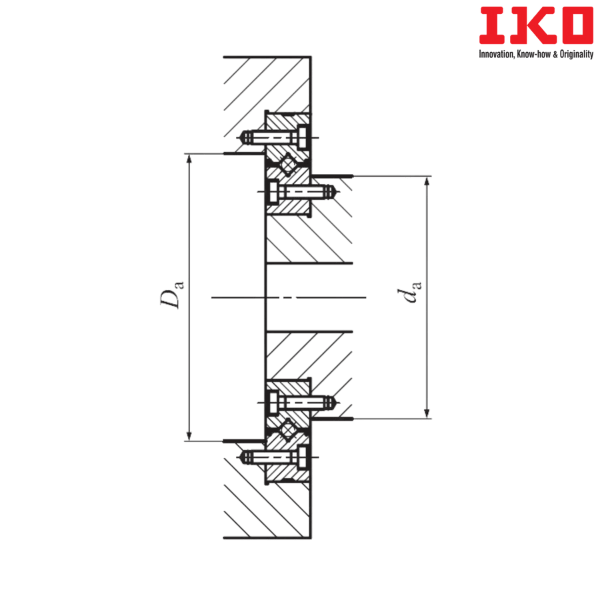

Mounting Dimension (da) mm - 132
Mounting Dimension (Da) mm - 168
Basic Dynamic Load Rating (C) N - 73400
Basic Static Load Rating (C0) N - 108000
Weight (kg) - 4.67
Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 9025 AD UU
Suffix Description :
D - With Counter-Bored Mounting Holes on Both Inner Ring and Outer Ring in the Opposite Direction
** Images are for representation purposes only
