Description
Brand - IKO
Item Number - CRBFV 8022 AT UU IKO
Also Known As - CRBFV8022ATUU
Category - Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 80
Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 165
Width (B) mm - 22
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.6
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 1
Mounting Hole (PCD1) mm - 97
Inner Ring of Mounting Holes - 10-M5 through
Mounting Hole (PCD2) mm - 148
Outer Ring of Mounting Holes - 10-φ5.5 through φ9.5 counter bore depth 5.4

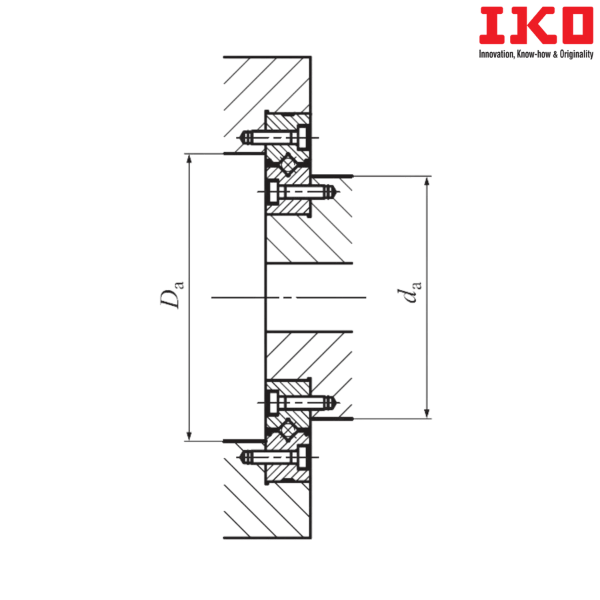

Mounting Dimension (da) mm - 107
Mounting Dimension (Da) mm - 137
Basic Dynamic Load Rating (C) N - 51100
Basic Static Load Rating (C0) N - 72000
Weight (kg) - 2.63
Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 8022 AT
Suffix Description :
UU - Sealed Type
T - With Female Threaded Mounting Holes on the Inner Ring

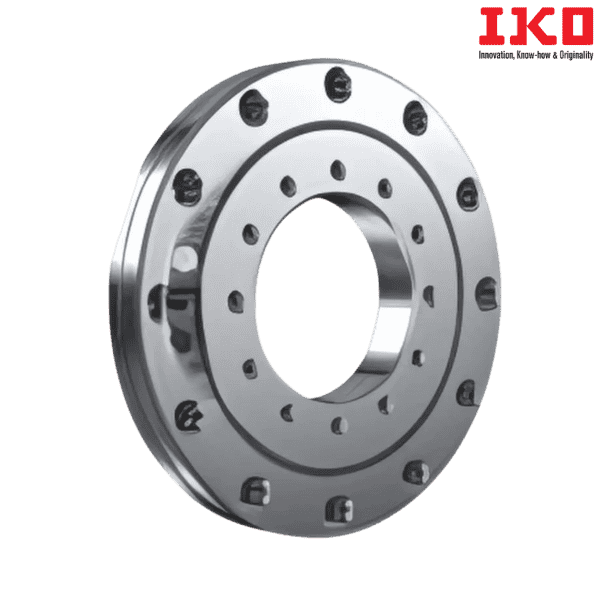

** Images are for representation purposes only
