Description
Brand - IKO
Item Number - CRBFV 5515 AT UU IKO
Also Known As - CRBFV5515ATUU
Category - Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 55
Bore Diameter (d) mm - 55
Outer Diameter (D) mm - 120
Width (B) mm - 15
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.6
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 0.6
Mounting Hole (PCD1) mm - 65
Inner Ring of Mounting Holes - 8-M5 through
Mounting Hole (PCD2) mm - 105
Outer Ring of Mounting Holes - 8-φ5.5 through φ9.5 counter bore depth 5.4

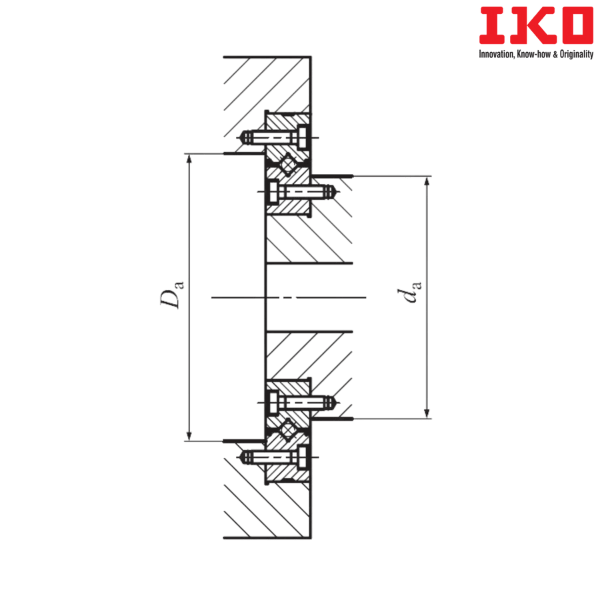

Mounting Dimension (da) mm - 76
Mounting Dimension (Da) mm - 94
Basic Dynamic Load Rating (C) N - 20100
Basic Static Load Rating (C0) N - 27700
Weight (kg) - 0.96
Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 5515 AT
Suffix Description :
UU - Sealed Type
T - With Female Threaded Mounting Holes on the Inner Ring
** Images are for representation purposes only
