Description
Brand - IKO
Item Number - CRBFV 3515 AT UU IKO
Also Known As - CRBFV3515ATUU

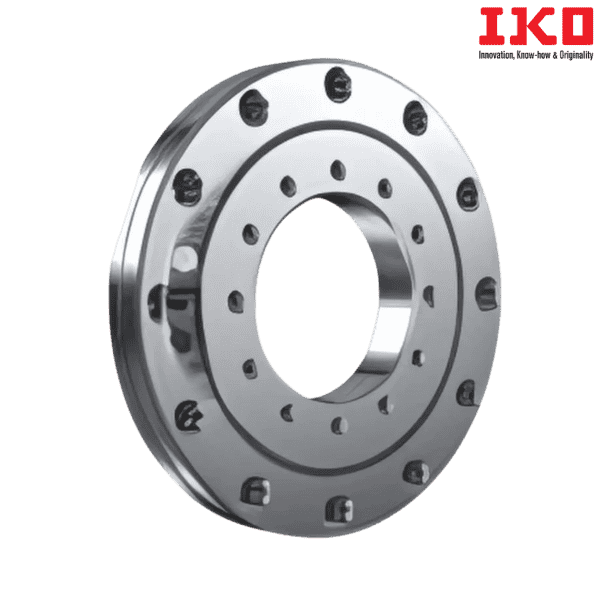

Category - Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 95
Width (B) mm - 15
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.6
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 0.6
Mounting Hole (PCD1) mm - 45
Inner Ring of Mounting Holes - 8-M4 through
Mounting Hole (PCD2) mm - 83
Outer Ring of Mounting Holes - 8-φ4.5 through φ8 counter bore depth 4.4

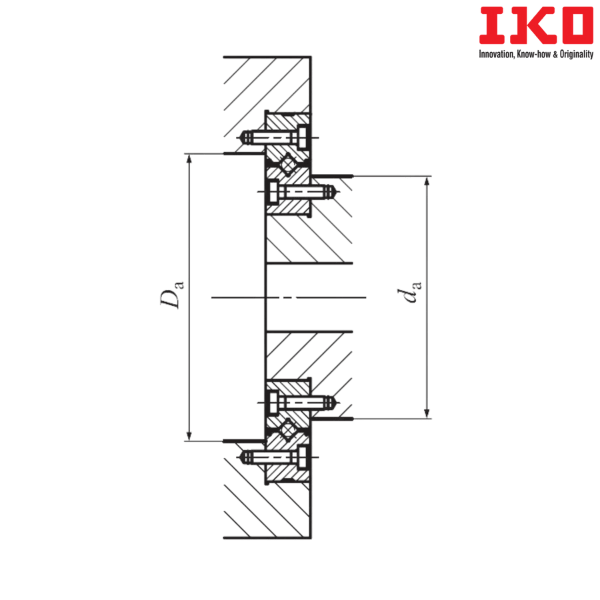

Mounting Dimension (da) mm - 56
Mounting Dimension (Da) mm - 74
Basic Dynamic Load Rating (C) N - 17300
Basic Static Load Rating (C0) N - 20900
Weight (kg) - 0.66
Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 3515 AT
Suffix Description :
UU - Sealed Type
T - With Female Threaded Mounting Holes on the Inner Ring
** Images are for representation purposes only
