Description
Brand - IKO
Item Number - CRBFV 2512 AT UU IKO
Also Known As - CRBFV2512ATUU

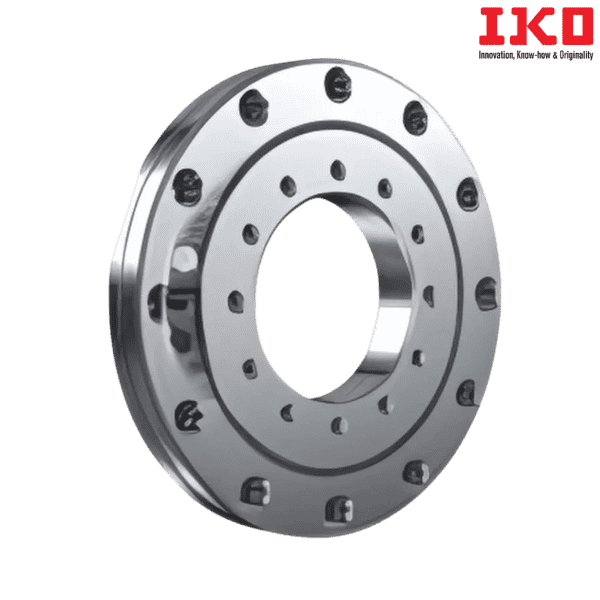

Category - Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 80
Width (B) mm - 12
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.6
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 0.6
Mounting Hole (PCD1) mm - 35
Inner Ring of Mounting Holes - 6-M3 through
Mounting Hole (PCD2) mm - 67
Outer Ring of Mounting Holes - 6-φ3.4 through φ6.5 counter bore depth 3.3

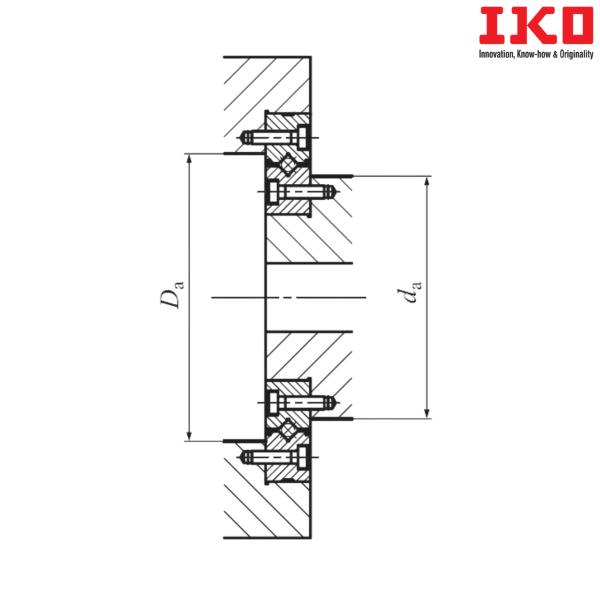

Mounting Dimension (da) mm - 46.5
Mounting Dimension (Da) mm - 58.5
Basic Dynamic Load Rating (C) N - 8610
Basic Static Load Rating (C0) N - 10600
Weight (kg) - 0.40
Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 2512 AT
Suffix Description :
UU - Sealed Type
T - With Female Threaded Mounting Holes on the Inner Ring
** Images are for representation purposes only
