Description
Brand - IKO
Item Number - CRBFV 2012 AT IKO
Also Known As - CRBFV2012AT

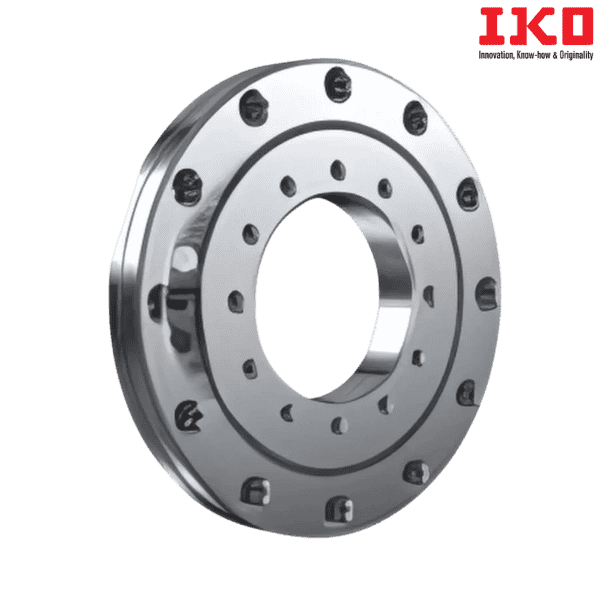

Category - Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 70
Width (B) mm - 12
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.3
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 0.3
Mounting Hole (PCD1) mm - 28
Inner Ring of Mounting Holes - 6-M3 through
Mounting Hole (PCD2) mm - 57
Outer Ring of Mounting Holes - 6-φ3.4 through φ6.5 counter bore depth 3.3

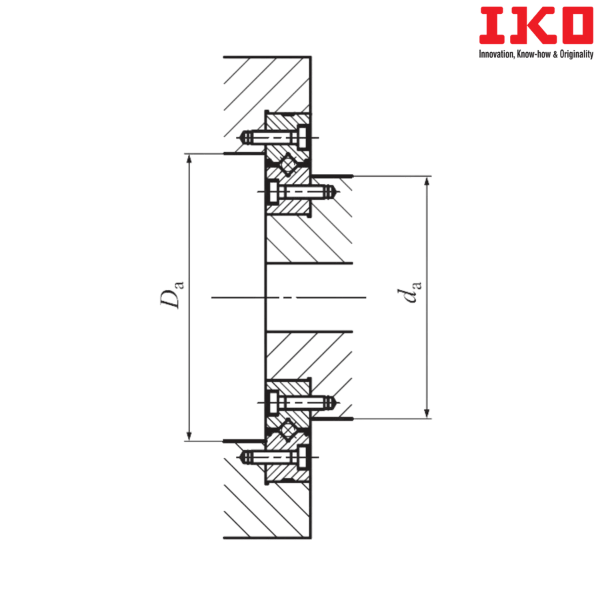

Mounting Dimension (da) mm - 36.5
Mounting Dimension (Da) mm - 48.5
Basic Dynamic Load Rating (C) N - 7600
Basic Static Load Rating (C0) N - 8370
Weight (kg) - 0.31
Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 2012 AT UU
Suffix Description :
T - With Female Threaded Mounting Holes on the Inner Ring
** Images are for representation purposes only
