Description
Brand - IKO
Item Number - CRBFV 11528 A IKO
Also Known As - CRBFV11528A
Category - Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 115
Bore Diameter (d) mm - 115
Outer Diameter (D) mm - 240
Width (B) mm - 28
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 1.5
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 1.5
Mounting Hole (PCD1) mm - 139
Inner Ring of Mounting Holes - 12- φ 9 through φ 14 counter bore depth 13.5
Mounting Hole (PCD2) mm - 217
Outer Ring of Mounting Holes - 12-φ9 through φ14 counter bore depth 13.5

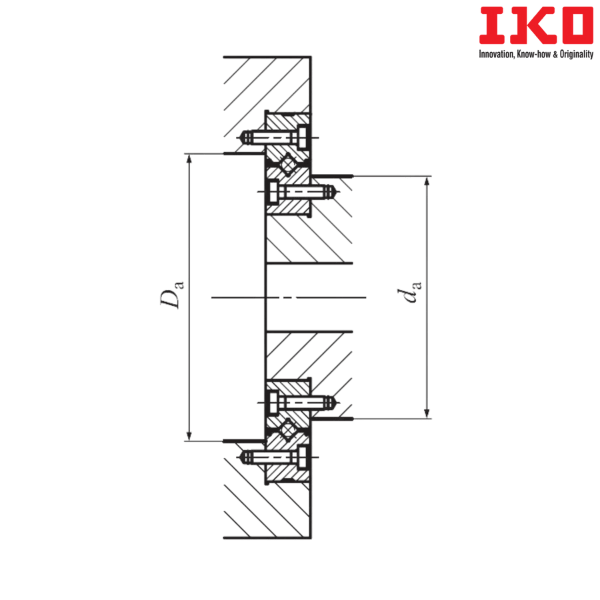

Mounting Dimension (da) mm - 162
Mounting Dimension (Da) mm - 198
Basic Dynamic Load Rating (C) N - 84300
Basic Static Load Rating (C0) N - 138000
Weight (kg) - 6.63
Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 11528 A UU
** Images are for representation purposes only
