CRBFV 108 AT IKO

Brand - IKO
Item Number - CRBFV 108 AT IKO
Also Known As - CRBFV108AT
Category - Open Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator
Shaft Diameter (mm) - 10
Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 52
Width (B) mm - 8
Minimum Allowable Single Value of Chamfer Dimension (r1) mm - 0.3
Minimum Allowable Single Value of Chamfer Dimension (r2) mm - 0.3
Mounting Hole (PCD1) mm - 16
Inner Ring of Mounting Holes - 4-M3 through
Mounting Hole (PCD2) mm - 42
Outer Ring of Mounting Holes - 6-φ3.4 through φ6.5 counter bore depth 3.3

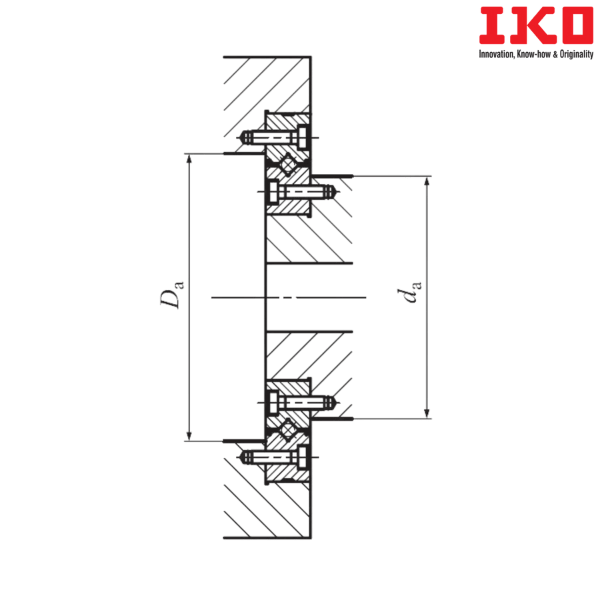

Mounting Dimension (da) mm - 24
Mounting Dimension (Da) mm - 31
Basic Dynamic Load Rating (C) N - 2910
Basic Static Load Rating (C0) N - 2430
Weight (kg) - 0.12
Sealed Type Mounting Holed Type High Rigidity Crossed Roller Bearing V with Separator - CRBFV 108 AT UU

Suffix Description :
T - With Female Threaded Mounting Holes on the Inner Ring
