Description
Brand - IKO
Item Number - CRBC 8016 IKO
Also Known As - CRBC8016
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 80
Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 120
Width (B) mm - 16
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 86
Mounting Dimension (Da) mm - 107
Basic Dynamic Load Rating (C) N - 18200
Basic Static Load Rating (C0) N - 25500
Weight (kg) - 0.74
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 8016 UU
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 8016
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 8016 UU

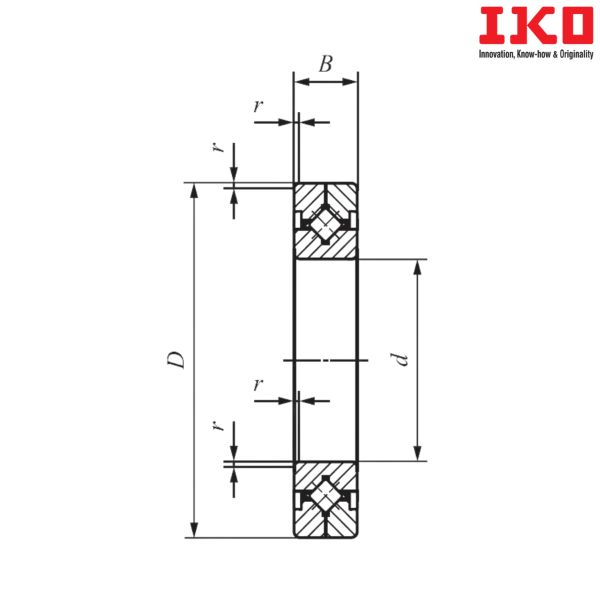

** Images are for representation purposes only
