Description
Brand - IKO
Item Number - CRBC 70070 IKO
Also Known As - CRBC70070
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 700
Bore Diameter (d) mm - 700
Outer Diameter (D) mm - 880
Width (B) mm - 70
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3
Mounting Dimension (da) mm - 731
Mounting Dimension (Da) mm - 834
Basic Dynamic Load Rating (C) N - 630000
Basic Static Load Rating (C0) N - 1390000
Weight (kg) - 115
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 70070

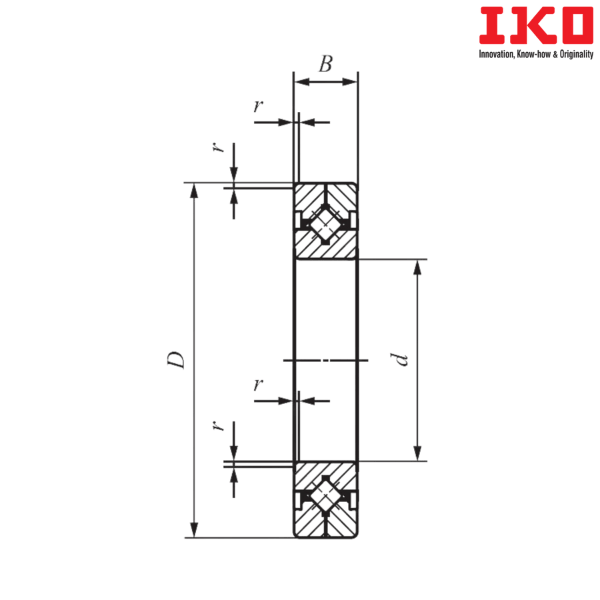

** Images are for representation purposes only
