Description
Brand - IKO
Item Number - CRBC 700150 IKO
Also Known As - CRBC700150
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 700
Bore Diameter (d) mm - 700
Outer Diameter (D) mm - 1020
Width (B) mm - 150
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3
Mounting Dimension (da) mm - 751
Mounting Dimension (Da) mm - 953
Basic Dynamic Load Rating (C) N - 1660000
Basic Static Load Rating (C0) N - 3010000
Weight (kg) - 478
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 700150

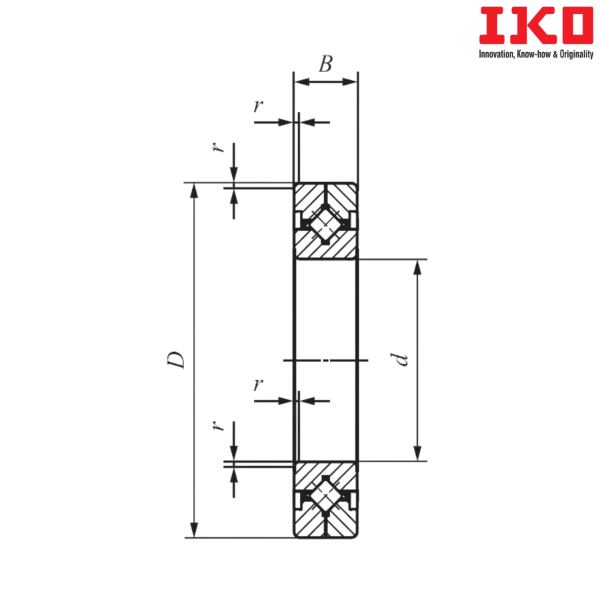

** Images are for representation purposes only
