Description
Brand - IKO
Item Number - CRBC 6013 IKO
Also Known As - CRBC6013
Category - Open and Standard Type Crossed Roller Bearings with Cage

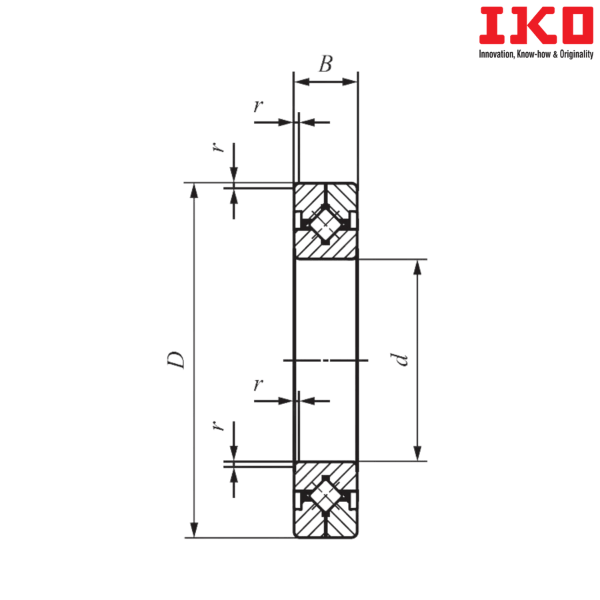

Shaft Diameter (mm) - 60
Bore Diameter (d) mm - 60
Outer Diameter (D) mm - 90
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 64
Mounting Dimension (Da) mm - 81
Basic Dynamic Load Rating (C) N - 11600
Basic Static Load Rating (C0) N - 14600
Weight (kg) - 0.33
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 6013 UU
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 6013
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 6013 UU
** Images are for representation purposes only
