Description
Brand - IKO
Item Number - CRBC 60040 IKO
Also Known As - CRBC60040
Category - Open and Standard Type Crossed Roller Bearings with Cage

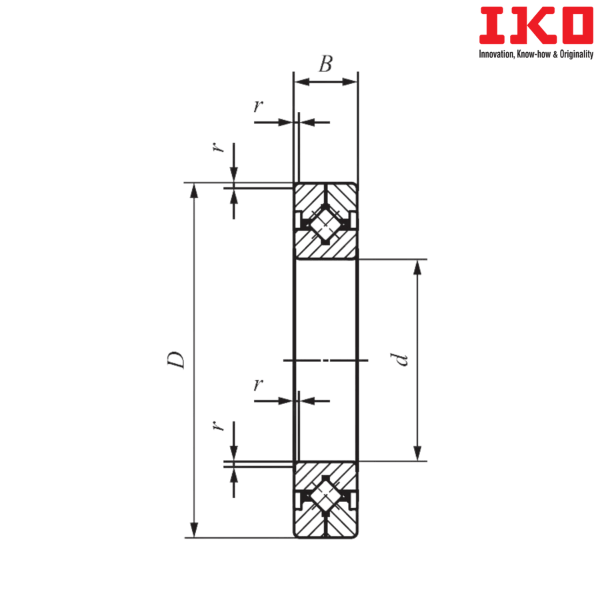

Shaft Diameter (mm) - 600
Bore Diameter (d) mm - 600
Outer Diameter (D) mm - 700
Width (B) mm - 40
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3

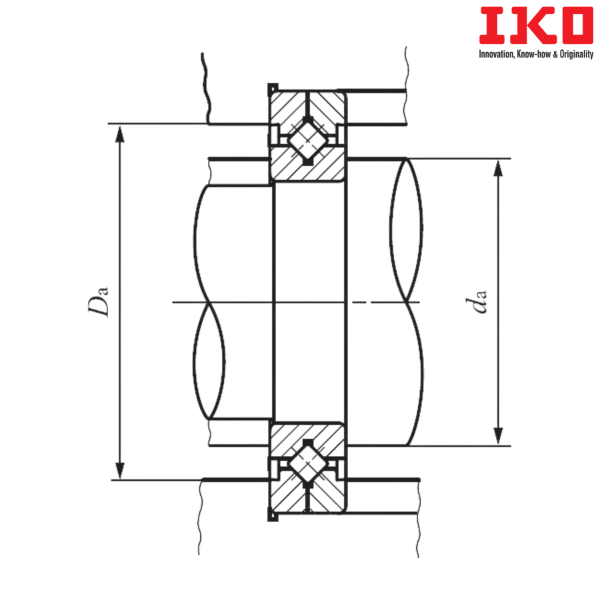

Mounting Dimension (da) mm - 621
Mounting Dimension (Da) mm - 676
Basic Dynamic Load Rating (C) N - 231000
Basic Static Load Rating (C0) N - 581000
Weight (kg) - 30.6
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 60040

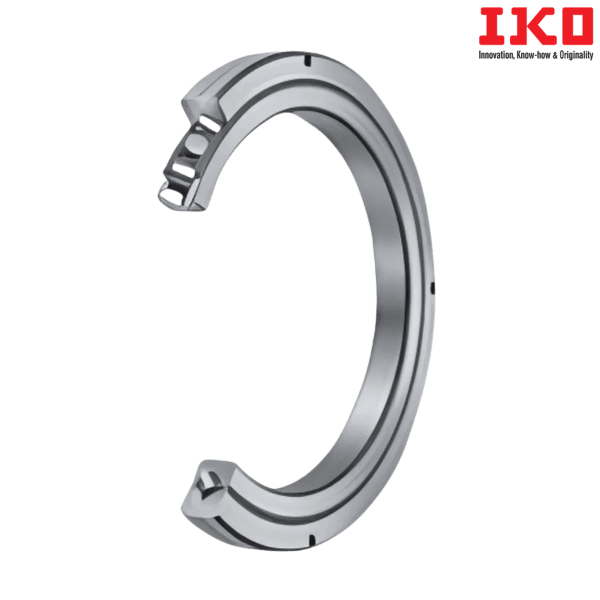

** Images are for representation purposes only
